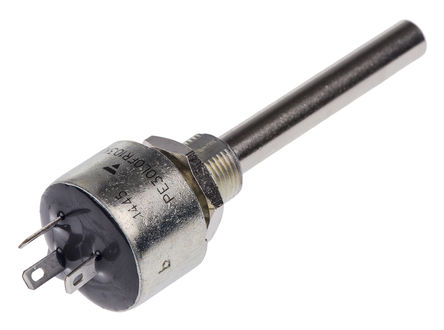

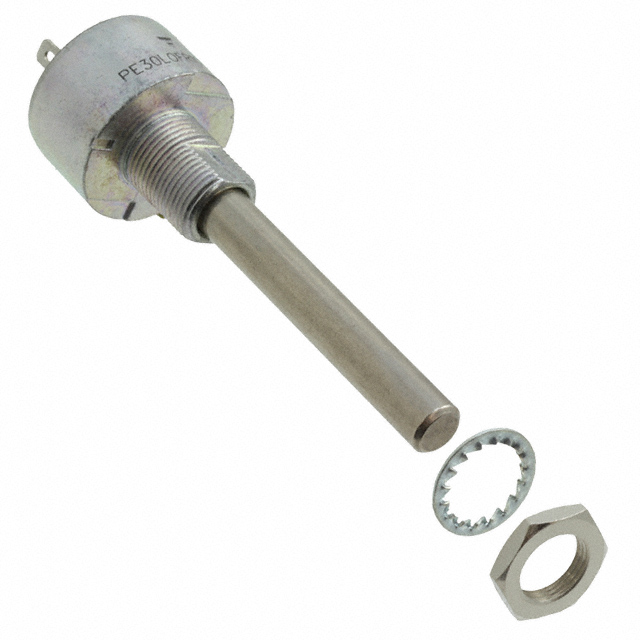

PE30L0FR103KAB

VISHAY  PE30L0FR103KAB  旋转电位器, 金属陶瓷, PE30系列, 10 kohm, 线性, 1 转, 3 W, 面板

The is a Fully Sealed Potentiometer, military and professional grade, cermet element with low temperature coefficient of 150ppm/°C. 50mm shaft length and use of Faston 2.86mm connections and linear taper.

.

3W at 70°C High power rating

.

Tests according to CECC 41000 or IEC 60393-1

.

270° ±10° Electrical travel

.

10⁵MR Insulation resistance

.

IP67 Protection rating sealing

.

2500V Dielectric strength

.

Linear/logarithmic variations available

.

Low Temperature coefficient is 150ppm/°C typical

.

Tests according to CECC 41000 or IEC 60393-1 standards

.

Centre detent option
