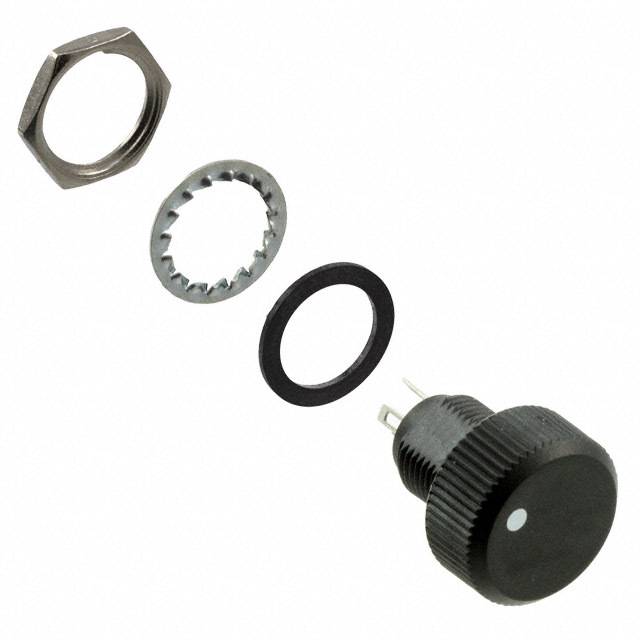

P16SNP102MAB15图片1

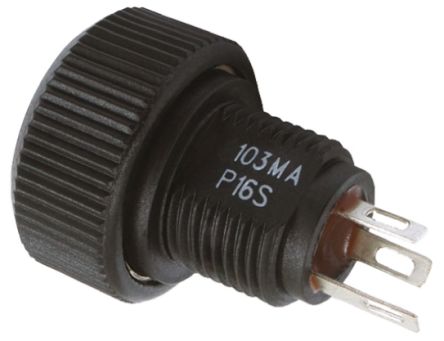

P16SNP102MAB15图片2
P16SNP102MAB15图片3
P16SNP102MAB15图片4
P16SNP102MAB15图片5
P16SNP102MAB15图片6
P16SNP102MAB15图片7
P16SNP102MAB15概述

VISHAY  P16SNP102MAB15  旋转电位器, 金属陶瓷, P16S系列, 1 kohm, 线性, 1 转, 1 W, 面板

The P16S is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel reducing to a minimum the required clearance.

**Features:**

* Compact Integrated

* Detent and Electric Cut Off at Beginning of Travel

* Fully Sealed and Panel Sealed

* Test According to CECC 41000 or IEC 60393-1


Allied Electronics:
Potentiometer; Cermet; Rest 1 Kilohms; Panel; 1 Turn; Pwr-Rtg 1W; Linear; with Switch


Newark:
# VISHAY  P16SNP102MAB15  Rotary Potentiometer, Cermet, 1 kohm, 1 W, ± 20%, P16SN Series, 1 Turns, Linear


P16SNP102MAB15中文资料参数规格
技术参数

额定电压DC 31.6 V

容差 ±20 %

额定功率 1 W

电阻 1 KΩ

阻值偏差 ±20 %

工作温度Max 125 ℃

工作温度Min -40 ℃

外形尺寸

高度 25.1 mm

物理参数

温度系数 ±150 ppm/℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买P16SNP102MAB15
型号: P16SNP102MAB15
描述:VISHAY  P16SNP102MAB15  旋转电位器, 金属陶瓷, P16S系列, 1 kohm, 线性, 1 转, 1 W, 面板
