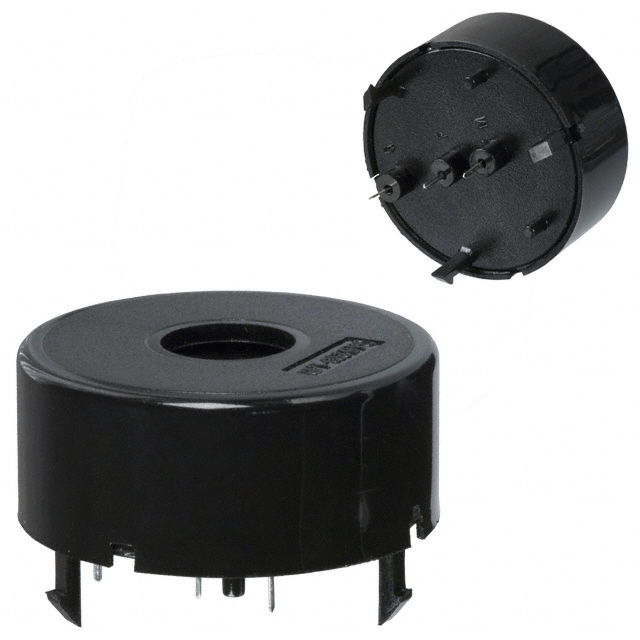

MALLORY PT-3534FPQ 蜂鸣器, 3.4KHz, 105DBA 28VDC
Sonalert mounted Piezo transducer.
得捷:
BUZZER PIEZO 9V 39MM TH
贸泽:
压电蜂鸣器和音频指示器 XDUCR, PIEZO, 3.4KHZ 105DB, 3TERMS, 39X20
e络盟:
蜂鸣器, 3.4KHz, 105DBA 28VDC
艾睿:
Audio Indicator Piezo 3VDC 28VDC 12mA 9VDC 105dBA 2900Hz to 3900Hz Panel Mount Bulk
Allied Electronics:
TRANSDUCER; 3 TO 28 VDC MAX.; 105 DB MIN. @ 10 CM; 3400 HZ + 500 HZ
Verical:
Audio Indicator Piezo 3VDC 28VDC 12mA 9VDC 105dBA 2900Hz to 3900Hz Panel Mount Bulk
Newark:
# MALLORY PT-3534FPQ Transducer, Buzzer, Buzzer, 3 V, 28 V, 12 mA, 105 dB
MASTER:
Audio 3VDC 28VDC 12mA 9VDC 105dBA 2900Hz to 3900Hz Panel Mount
Electro Sonic:
Audio 3VDC 28VDC 12mA 9VDC 105dBA 2900Hz to 3900Hz Panel Mount
Win Source:
BUZZER PIEZO 9V 39MM TH / Buzzers Transducer, Externally Driven Piezo with Feedback 9 V 12mA 3.4kHz 105dB @ 9V, 10cm Through Hole PC Pins
频率 3.4 kHz
电源电压DC 3.00V min
额定电流 12.0 mA
供电电流 12 mA
共振频率 3.4 kHz
工作温度Max 100 ℃
工作温度Min -20 ℃
额定电压 9 V
电源电压 3VDC ~ 28VDC
电源电压Max 28 V
电源电压Min 3 V
安装方式 Through Hole
封装 Radial
长度 39 mm
宽度 39 mm
高度 16 mm
直径 39.0 mm
封装 Radial
颜色 Black
重量 11.2 g
工作温度 -20℃ ~ 100℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
