CLARE PAA110 继电器, MOSFET, 400 V, 150 mA, 22R, DPST常开

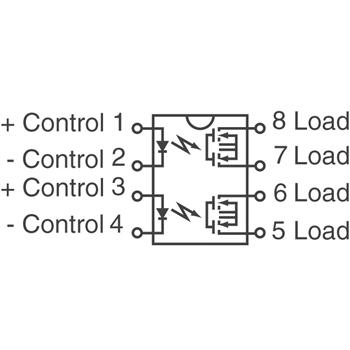

The is a Single Pole OptoMOS® Relay with low drive power requirements TTL/CMOS compatible. This performance leader provides high peak load voltage handling capability and improved peak load current handling.
- .
- No moving parts
- .
- High reliability
- .
- Arc-free with no snubbing circuits
- .
- VDE and FCC compatible
- .
- No EMI/RFI generation
- .
- Machine insertable, wave solderable
负载电流 150 mA
隔离电压 3.75 kV
正向电流 5 mA
输出电压Max 400 V
输出电流Max 0.15 A
输入电压 1.4 V
安装方式 Through Hole
封装 DIP-8
封装 DIP-8
包装方式 Tube
制造应用 Computers & Computer Peripherals, 计算机和计算机周边, Industrial, Avionics, 通信与网络, Medical, 安全, Communications & Networking, 工业, Security, 医用, 航空电子
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PAA110 Clare | 当前型号 | 当前型号 |
LAA110 Clare | 类似代替 | PAA110和LAA110的区别 |
