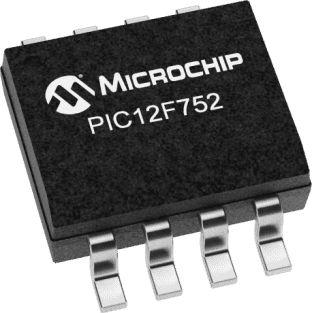

PIC12F752-I/SN

MICROCHIP  PIC12F752-I/SN  微控制器, 8位, 闪存, AEC-Q100, PIC12F7xx, 20 MHz, 1.75 KB, 64 Byte, 8 引脚, SOIC

The is a mid-range PIC12 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program only 35 single word instructions CMOS flash based Microcontroller packs powerful PIC®RISC architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 1.8kB of addressable program memory size, 64bytes of data memory size, 6 general-purpose I/O pins, two comparators, 4-channel 10-bit analog-to-digital A/D converter and one 5-bit digital-to-analog D/A converter. This device operates at a maximum frequency of 20MHz wide operating voltage of 2 to 5.5V.

.

35 14-bit wide easy instructions to learn

.

8 level hardware stack

.

1 9-bit file select register

.

Hardware interrupt handling

.

Brown-out reset BOR

.

Power on reset POR

.

8MHz internal oscillator

.

Watch dog timer WDT

.

Internal voltage reference Bandgap

.

Two 8-bit digital timers

.

One 16-bit digital timer

.

One hardware limit timer

.

1x Capture/Compare/PWM CCP

.

1x Complementary waveform generator CWG/Complementary output generator COG

.

4x Capacitive touch channels

.

In-Circuit Serial Programming™ ICSP™
