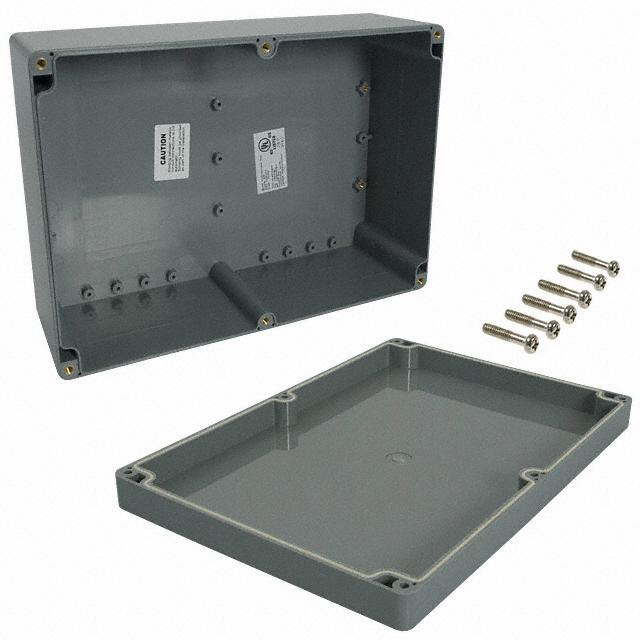

PN-1335-DG图片1
PN-1335-DG图片2
PN-1335-DG图片3
PN-1335-DG图片4
PN-1335-DG图片5
PN-1335-DG图片6
PN-1335-DG图片7
PN-1335-DG图片8
PN-1335-DG图片9
PN-1335-DG图片10
PN-1335-DG图片11
PN-1335-DG图片12
PN-1335-DG图片13
PN-1335-DG图片14
PN-1335-DG概述

BUD INDUSTRIES  PN-1335-DG  机盒

NEMA 4X Enclosures, Neoprene Gasket, High Impact ABS, Polycarbonate Body Material

These polycarbonate and high-impact ABS molded enclosures meet NEMA 4X specifications and are ideal for use in the electrical and electronic industries. Available in three different versions:

* Designed to IP 65 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 Specifications

* Cover Attaching Screws Are Outside the Sealing Area, Preventing Ingress of Moisture and Dust

* Internal Bosses Allow Mounting of PCBs Horizontally or for Connection of Terminals, Etc., into Threaded Brass Inserts

* Internal Guide Slots for Mounting PCB Assemblies Vertically

* Cover Screws Are M-4 Stainless Steel, Non-Magnetic and Fasten into Threaded Brass Inserts

* The Polycarbonate Material Has an Operating Temperature of -40°C to +100°C

* ABS Material Has an Operating Temperature of -20°C to +80°C

PN-1335-DG中文资料参数规格
技术参数

易燃性等级 UL 94 HB

外形尺寸

长度 265.0236 mm

宽度 185 mm

高度 95.0 mm

厚度 3.05 mm

物理参数

外壳颜色 Gray

颜色 Gray

材质 Acrylonitrile Butadiene Styrene ABS

重量 816.5 g

外壳材质 Acrylonitrile Butadiene Styrene ABS

其他

产品生命周期 Active

制造应用 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 3926903500

数据手册

在线购买PN-1335-DG
型号: PN-1335-DG
制造商: BUD
描述:BUD INDUSTRIES  PN-1335-DG  机盒
替代型号PN-1335-DG
型号/品牌 代替类型 替代型号对比

PN-1335-DG

BUD

当前型号

当前型号

G378

Multicomp

功能相似

PN-1335-DG和G378的区别
