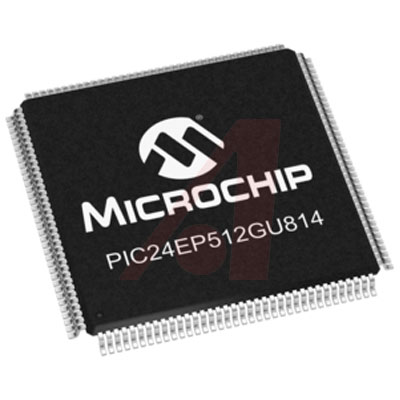

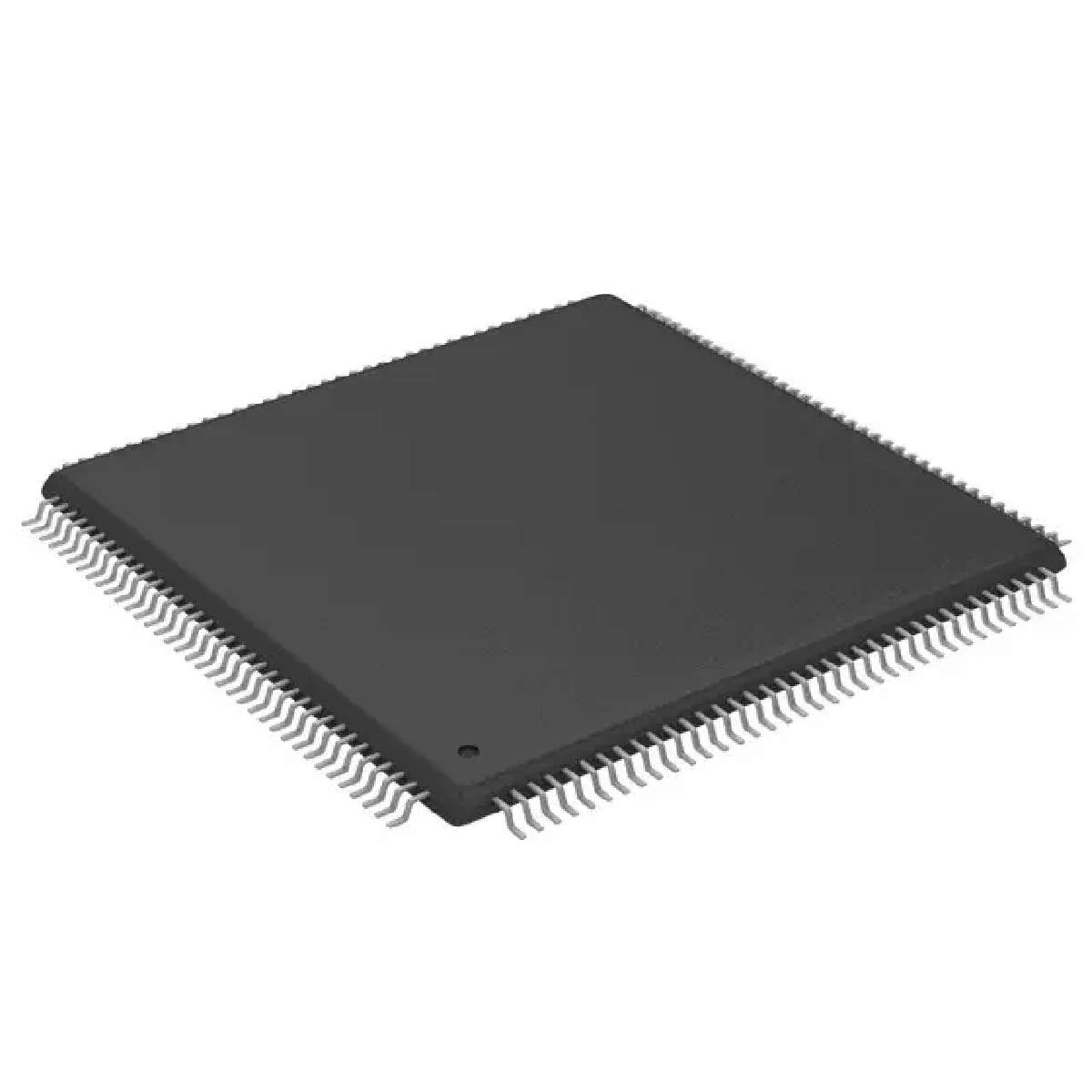

MICROCHIP PIC24EP512GU814-I/PH 微控制器, 16位, 高速 PWM, PIC24EP, 140 MHz, 536 KB, 52 KB, 144 引脚, TQFP
The is a general purpose PIC24E family highest performance and excellent code density 16-bit Microcontroller packs powerful PIC®RISC architecture with up to 70 MIPS of performance at 3.3V. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 512kB of addressable program memory size, 24kB of Auxiliary flash, 53248bytes of data memory size, 122 general-purpose I/O pins, Two 32-channel 10/12-bit analog-to-digital A/D converter and one 4-bit digital-to-analog D/A converter. This device operates at a maximum frequency of 140MHz with wide operating voltage of 3 to 3.6V.
频率 60 MHz
电源电压DC 3.00V min
针脚数 144
时钟频率 140 MHz
RAM大小 52 KB
位数 16
FLASH内存容量 536 KB
模数转换数ADC 2
输入/输出数 122 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 144
封装 TQFP-144
封装 TQFP-144
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Communications & Networking, 多媒体, 音频, 医用, 通信与网络, Multimedia, Security, Motor Drive & Control, 安全, Lighting, 照明, Medical, 车用, 电机驱动与控制, Automotive, Consumer Electronics, Audio, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 3A991.a.2
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC24EP512GU814-I/PH Microchip 微芯 | 当前型号 | 当前型号 |
PIC24EP512GU814-E/PL 微芯 | 完全替代 | PIC24EP512GU814-I/PH和PIC24EP512GU814-E/PL的区别 |
PIC24EP512GU814T-I/PH 微芯 | 完全替代 | PIC24EP512GU814-I/PH和PIC24EP512GU814T-I/PH的区别 |
DSPIC33EP256MU814-I/PH 微芯 | 类似代替 | PIC24EP512GU814-I/PH和DSPIC33EP256MU814-I/PH的区别 |
