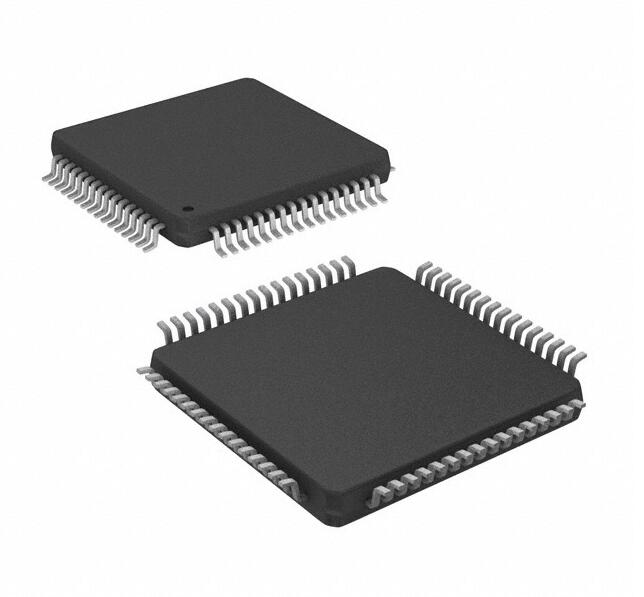

PIC18F6620-I/PT

MICROCHIP  PIC18F6620-I/PT  微控制器, 8位, 闪存, PIC18F, 25 MHz, 2 KB, 3.75 KB, 64 引脚, TQFP

The is a high-performance PIC18 family 8-bit powerful yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®RISC architecture with up to 10 MIPS of processing power. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 64kB of addressable program memory size, 3840bytes of data memory size, 52 general-purpose I/O pins and 12-channel 10-bit analog-to-digital A/D converter. This device operates at a maximum frequency of 25MHz wide operating voltage of 2 to 5.5V.

.

Source code compatible with the PIC16 and PIC17 instruction sets

.

C compiler optimized architecture/instruction set

.

8 x 8 Single-cycle hardware multiplier

.

MPLAB In-circuit debug ICD

.

Priority levels for interrupts

.

Programmable code protection

.

Power on reset POR

.

Power-up timer PWRT

.

Oscillator start-up timer OST

.

Watchdog timer WDT

.

Power saving SLEEP mode

.

Two 8-bit digital timer

.

Three 16-bit digital timers

.

In-Circuit Serial Programming™ ICSP™

.

5x Capture/Compare/PWM CCP

.

1024bytes of EEPROM data memory

.

31-level, software accessible hardware stack
