PJ1086L

HAMMOND  PJ1086L  聚酯模制机箱

UL 508 Type 1, 2, 3, 4, 4X, 12 and 13

CSA Type 1, 2, 3, 4, 4X, 12 and 13

Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13

Complies with IEC 529, IP66

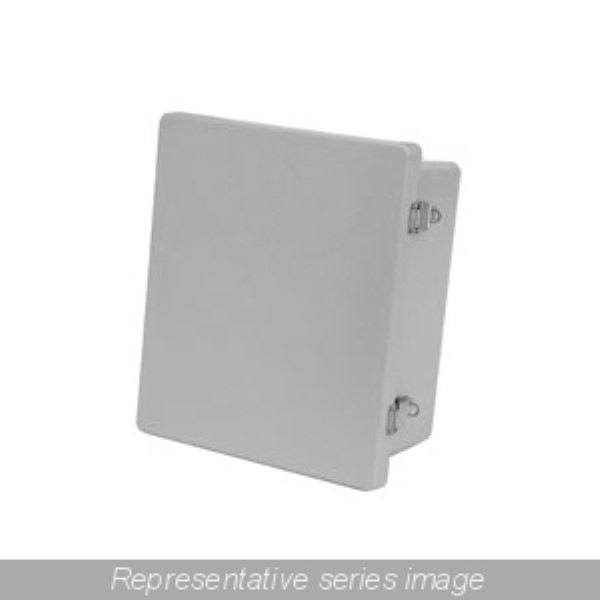

Medium Gray Molded Fiberglass Polyester Enclosure with Matching Cover

Standard JIC Sizes Under 18" × 16"

Door Fasteners Include a Provision for Padlocking

Continuous Stainless Steel Door Hinge

Operating Temperature: –40°C to 130°C –40°F to 266°F

Impact Index of 6.78 J 5 Ft./Lb.

10-32 Threaded Brass Inserts Are Provided for Optional Inner Panel or Terminal Kit Mounting, Hardware Is Included

Threaded Brass Inserts Are Provided for Mounting Feet to the Rear of the Enclosure

Stainless Steel Mounting Brackets and Hardware Are Provided for Mounting to the Rear of the Enclosure

Enclosures Are Easily Punched, Cut or Drilled

Optional Inner Panels Are Available in White Powder Coated Steel or Unfinished Aluminum
