PIC12F629-I/MD参数规格_中文资料_数据手册PDF

PIC12F629-I/MD概述

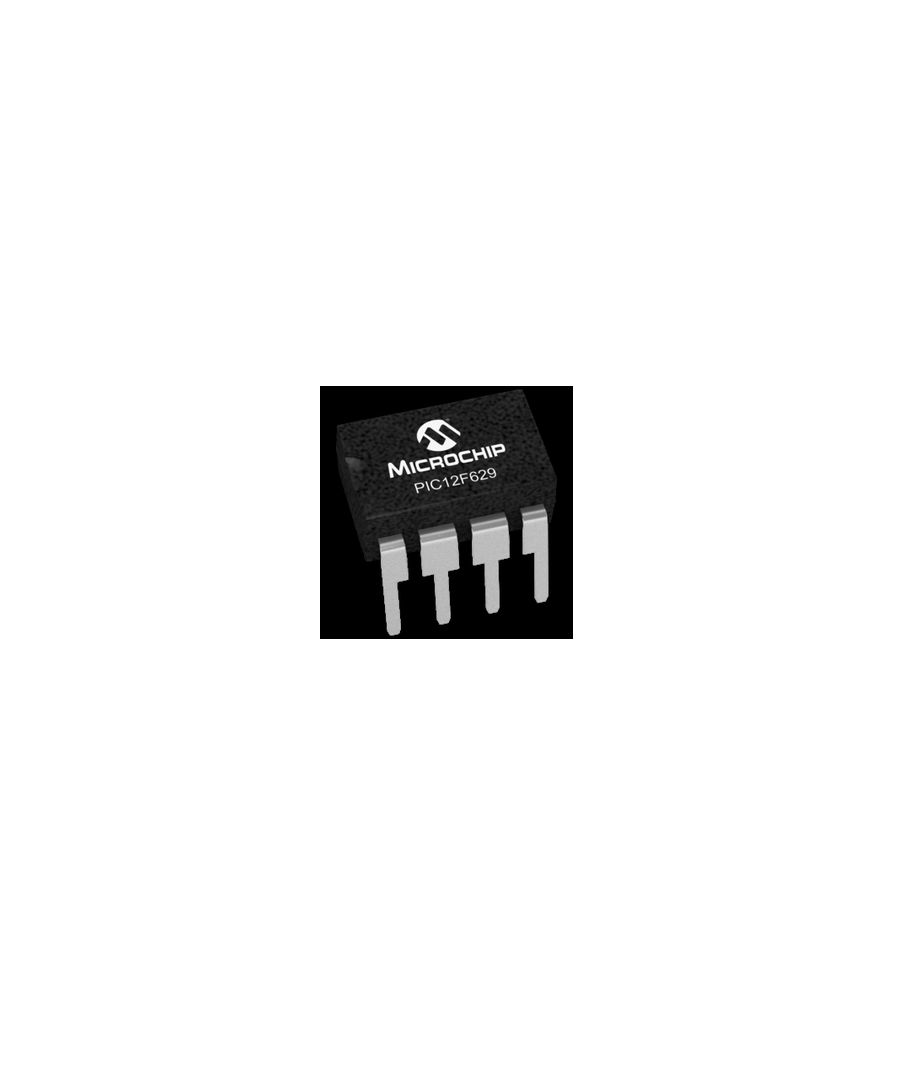

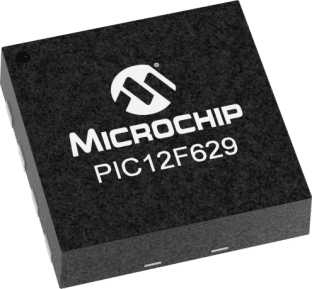

MICROCHIP PIC12F629-I/MD 微控制器, 8位, 闪存, AEC-Q100, PIC12F6xx, 20 MHz, 1.75 KB, 64 Byte, 8 引脚, DFN

The is a mid-range PIC12 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program only 35 single word instructions CMOS flash based Microcontroller packs powerful PIC®RISC architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 1.75kB of addressable program memory size, 64bytes of data memory size, 6 general-purpose I/O pins and one comparator. This device operates at a maximum frequency of 20MHz wide operating voltage of 2 to 5.5V.

.: 35 14-bit wide easy instructions to learn

.: 8 level hardware stack

.: 1 9-bit file select register

.: Hardware interrupt handling

.: Brown-out reset BOR

.: Power on reset POR

.: 4MHz internal oscillator

.: Watch dog timer WDT

.: One 8-bit digital timer

.: One 16-bit digital timer

.: In-Circuit Serial Programming™ ICSP™

.: 128bytes of EEPROM data memory

PIC12F629-I/MD中文资料参数规格

技术参数

频率 20 MHz

电源电压DC 5.00 V, 5.50 V max

工作电压 2V ~ 5.5V

针脚数 8

时钟频率 20.0 MHz, 4.00 MHz

RAM大小 64 b

位数 8

耗散功率 800 mW

FLASH内存容量 1792 B

I/O引脚数 6

存取时间 20.0 µs

内核架构 PIC

输入/输出数 6 Input

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 800 mW

电源电压Max 5.5 V

电源电压Min 2 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 DFN-8

外形尺寸

长度 4 mm

宽度 4 mm

高度 0.88 mm

封装 DFN-8

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tube

制造应用电机驱动与控制, Consumer Electronics, 工业, 消费电子产品, 医用, Automotive, Automotive, Automotive, Consumer Electronics, , Security, Medical, 安全, Lighting, Motor Drive & Control, 车用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

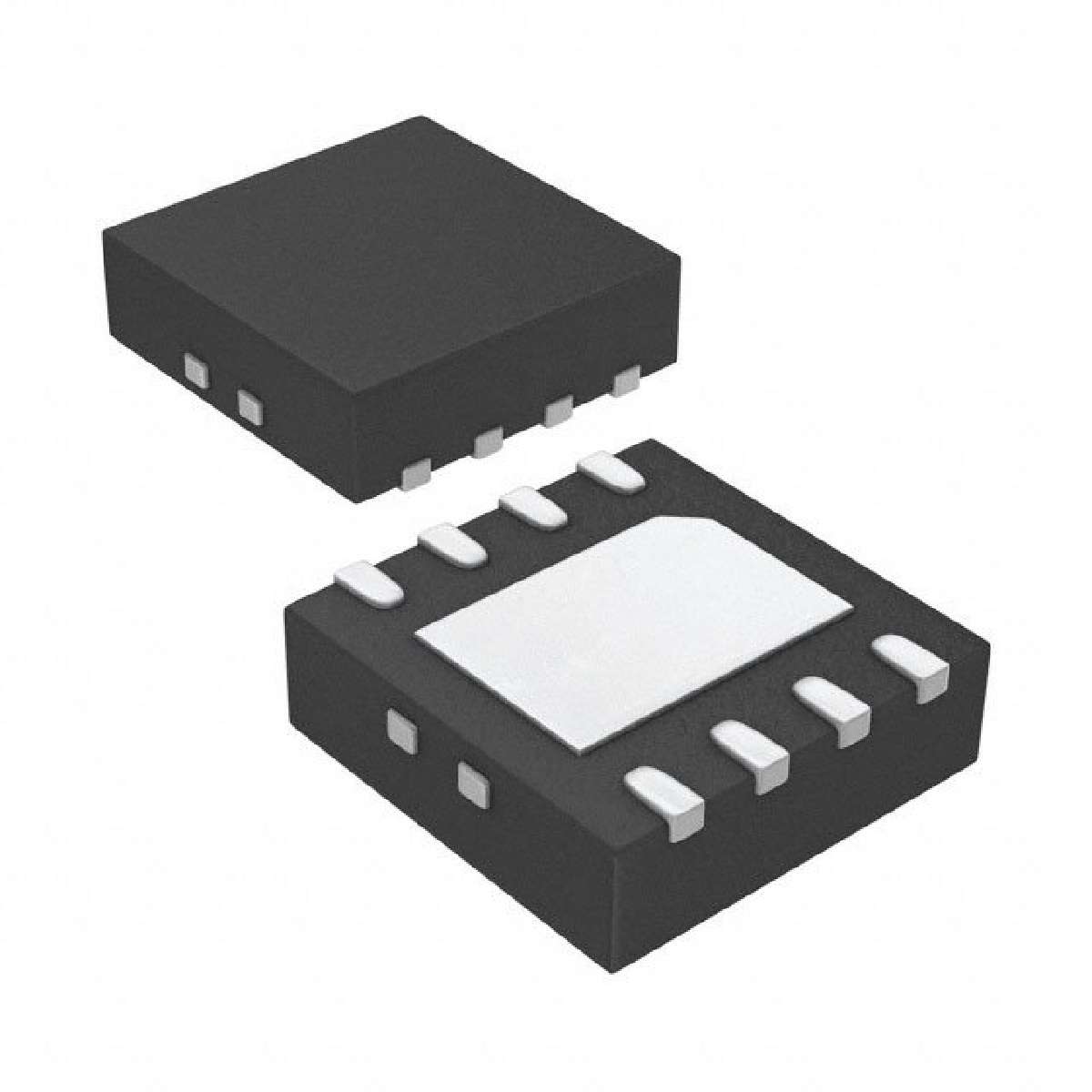

PIC12F629-I/MD引脚图与封装图
