PC722A概述
SWITCHCRAFT PC722A 直流电源插座, 2.0MM, 12VDC, 5A, PCB

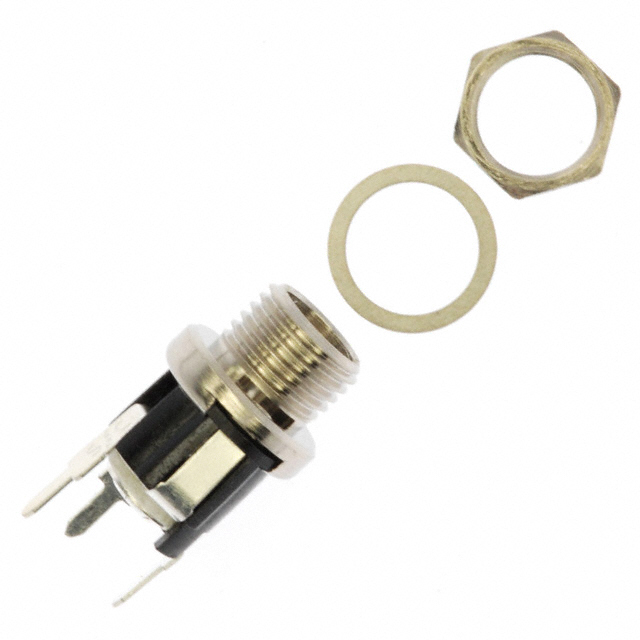

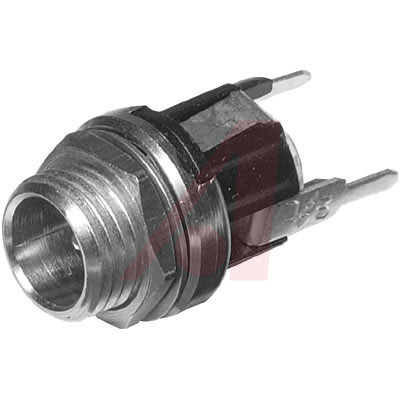

The is a Straight DC Power Jack with PC terminals. It has threaded bushings to allow use of both standard and locking power plugs. It has thermoplastic housing, plated copper alloy bushing and a rigid plastic insulators. It is supplied with one P2439 nickel-plated copper alloy hex nut and one P2441 nickel-plated steel flat washer.
- .
- 5A at 12VDC Resistive current rating
- .
- 0.01R Maximum initial contact resistance
- .
- 500VAC Maximum dielectric withstanding voltage
PC722A中文资料参数规格
技术参数
触点数 2
极性 Female
额定电压DC 12.0 V
额定电流 5 A
绝缘电阻 10000 MΩ
安装角度 180 °
额定电流Max 5 A
额定电压Max 12 VDC
额定电压 12 V
封装参数
安装方式 Through Hole
外形尺寸
长度 12.065 mm
高度 15.8 mm
直径 2.10 mm
物理参数
颜色 Silver
触点材质 Copper Alloy
其他
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
海关信息
ECCN代码 EAR99
HTS代码 8536694050
