NXP PSMN015-60PS 晶体管, MOSFET, N沟道, 50 A, 60 V, 12.6 mohm, 10 V, 3 V
The is a N-channel MOSFET suitable for standard level gate drive sources. It is designed and qualified for use in a wide range of DC-to-DC converters, load switching, server power supplies and domestic equipment applications.
- .
- High efficiency due to low switching and conduction losses
- .
- -55 to 175°C Junction temperature range
针脚数 3
漏源极电阻 12.6 mΩ
极性 N-Channel
耗散功率 86 W
阈值电压 3 V
漏源极电压Vds 60 V
输入电容Ciss 1220pF @30VVds
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 86 W
安装方式 Through Hole
引脚数 3

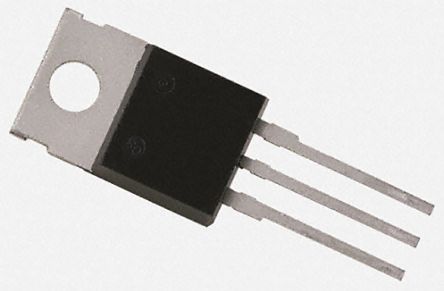

封装 TO-220
长度 10.3 mm
宽度 4.7 mm
高度 16 mm
封装 TO-220
产品生命周期 Unknown
制造应用 Industrial, Power Management, Consumer Electronics, Communications & Networking, Motor Drive & Control
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PSMN015-60PS NXP 恩智浦 | 当前型号 | 当前型号 |
PSMN2R7-30PL 恩智浦 | 类似代替 | PSMN015-60PS和PSMN2R7-30PL的区别 |
PSMN6R5-80PS 恩智浦 | 类似代替 | PSMN015-60PS和PSMN6R5-80PS的区别 |
PSMN034-100PS 恩智浦 | 类似代替 | PSMN015-60PS和PSMN034-100PS的区别 |
