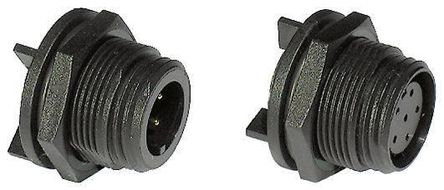

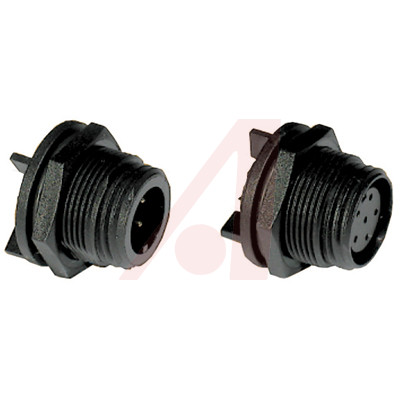

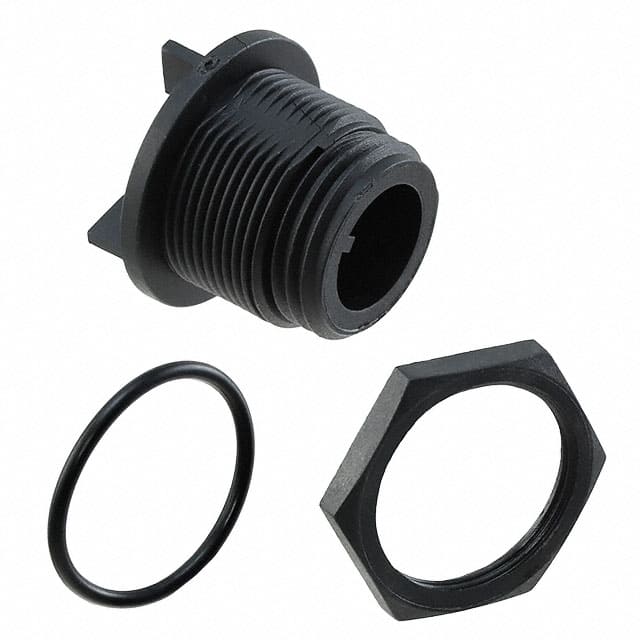

BULGIN PX0413/04P 圆形连接器外壳, Buccaneer 400系列, 插头, 4 路, 公, 面板安装
Rear Panel Mount Plugs and Socket Shells
Mates with cable connector
Single hole fixing
### 注
Ensure that the correct amperage contact is selected to match the amperage of the corresponding Plug/Socket.
得捷:
CONN RCPT HSNG MALE 4POS PNL MT
欧时:
Rear Panel Mounting plug shell 4 way
立创商城:
PX0413/04P
贸泽:
Standard Circular Connector 4 POLE R/PANEL MOUNT
e络盟:
圆形连接器, IP68, 后部安装, Buccaneer 400系列, 面板安装插头, 4 触点, 压接/焊接引脚--不提供触芯, 螺纹, 尼龙聚酰胺主体
艾睿:
Conn Circular PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Buccaneer® Bulk
Allied Electronics:
400 SERIES BUCCANEER SEALED REAR PANEL MOUNT CONNECTOR PLUG 4 PIN 5 AMPS
Verical:
Conn Circular PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Buccaneer® Bulk
Newark:
Circular Connector, Buccaneer 400 Series, Plug, 4, Pin, Panel Mount
MASTER:
Conn Circular PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Buccaneer®
Online Components:
Conn Circular PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Buccaneer®
力源芯城:
壳螺丝,4针,IP68后面板安装连接器
Electro Sonic:
Conn Circular PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Buccaneer®
触点数 4
极性 Male
触点电镀 Gold
额定电压AC 125 V
额定电流 5 A
绝缘电阻 1000000 MΩ
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 5 A
工作温度Max 80 ℃
工作温度Min -40 ℃
额定电压 125 V
接触电阻Max 5 mΩ
安装方式 Panel
封装 -
封装 -
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -40℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
