PIC16LF1459-I/ML

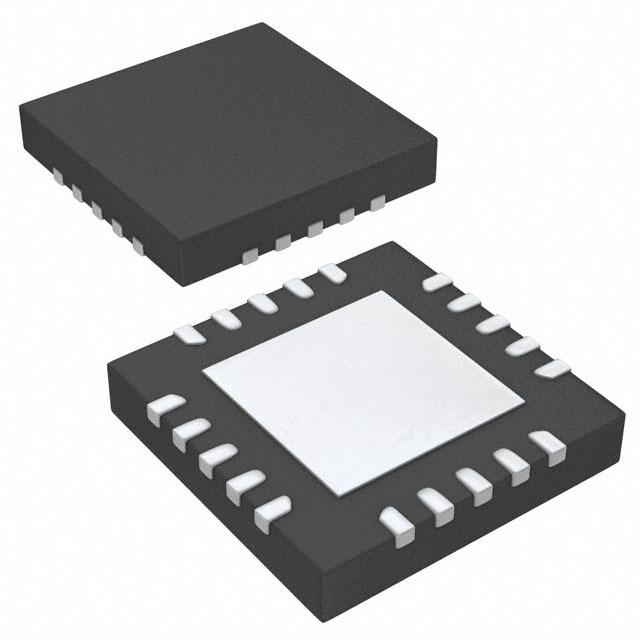

MICROCHIP  PIC16LF1459-I/ML  微控制器, 8位, 闪存, PIC16LF145x, 48 MHz, 14 KB, 1 KB, 20 引脚, QFN

The is an enhanced mid-range PIC16 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®RISC architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 14kB of addressable program memory size, 1024bytes of data memory size, 18 general-purpose I/O pins, two comparators, 9-channel 10-bit analog-to-digital A/D converter and one 5-bit digital-to-analog D/A converter. This device operates at a maximum frequency of 48MHz with wide operating voltage of 1.8 to 3.6V.

.

49 14-bit wide easy instructions to learn

.

16 level hardware stack

.

2 16-bit file select registers

.

Hardware interrupt handling with content save

.

Programmable brown-out reset BOR

.

Programmable low voltage detection

.

Power on reset POR

.

Watch dog timer WDT

.

Internal voltage reference Bandgap

.

One 16-bit digital timer

.

1x Complementary waveform generator CWG/Complementary output generator COG

.

In-Circuit Serial Programming™ ICSP™
