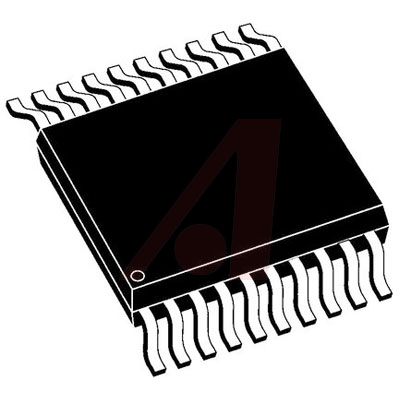

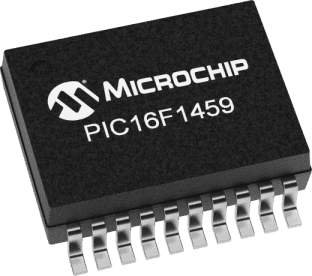

PIC16F1459-I/SS

MICROCHIP  PIC16F1459-I/SS  微控制器, 8位, 闪存, PIC16F145x, 48 MHz, 14 KB, 1 KB, 20 引脚, SSOP

The is a 20-pin 8-bit Flash USB Microcontroller with XLP technology. This family of device contains an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers FSRs provides the ability to read program and data memory.

.

Enhanced mid-range core with 49 instruction, 16 stack levels

.

Flash program memory with self read/write capability

.

High endurance flash memory HEF

.

128-byte of non-volatile data storage

.

Internal 48MHz oscillator

.

Universal serial bus 2.0 module with clock recovery from USB host

.

2x standalone PWM modules

.

Complementary waveform generator CWG module

.

Integrated temperature indicator module

.

10-channel 10-bit ADC with voltage reference

.

2 Analogue comparators

.

5-bit Digital to Analogue Converter DAC

.

MI²C/SPI module

.

Enhanced addressable USART module

.

25mA Source/sink current I/O

.

2x 8-bit Timers TMR0/TMR2

.

1x 16-bit Timer TMR1

.

Extended watchdog timer WDT

.

Enhanced power-on/off-reset

.

Low-power brown-out reset LPBOR

ESD sensitive device, take proper precaution while handling the device.
