PLC2S-S10-C0概述

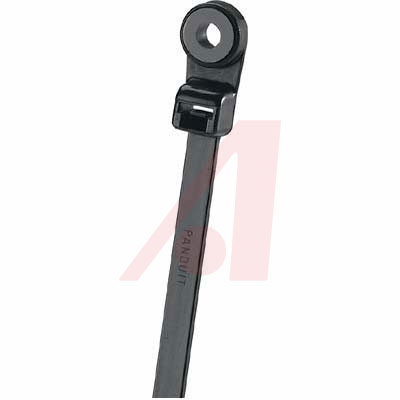

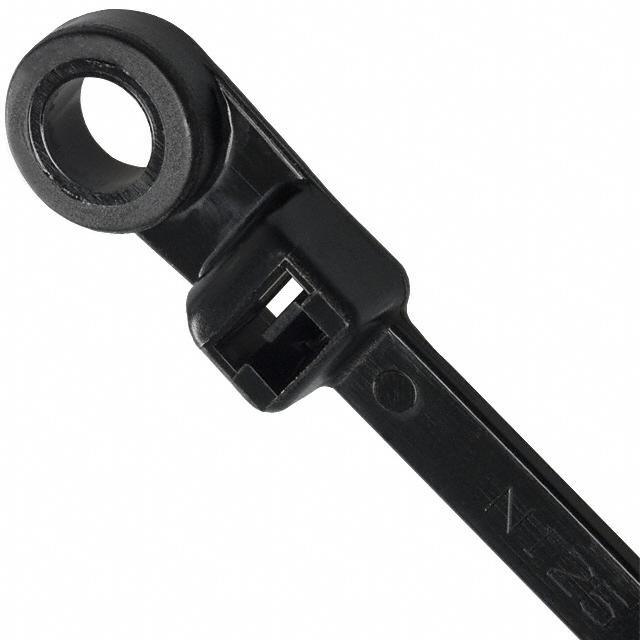

PANDUIT  PLC2S-S10-C0  电缆扎带, 尼龙 6.6 聚酰胺6.6, 黑色, 201 mm, 4.8 mm, 47 mm

The is a Pan-Ty® locking Clamp Tie made of weather resistant nylon 6.6. It is used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling. The curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation. This design allows for bundling before or after screwing clamp in place. It features one-piece construction for consistent performance and reliability.

.
Standard cross-section
.
Locking style
.
GTS-E, GS2B, GTH-E, GS4H, PTS, PTH, PPTS, STS2 and STH2 Application tools
.
Weather resistant material has greater resistance to damage caused by ultraviolet light
PLC2S-S10-C0中文资料参数规格
技术参数

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Screw

外形尺寸

长度 201 mm

宽度 4.8 mm

高度 4.1 mm

物理参数

颜色 Black

材质 Nylon

工作温度 85 ℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 工业, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买PLC2S-S10-C0
型号: PLC2S-S10-C0
制造商: Panduit 泛达
描述:PANDUIT  PLC2S-S10-C0  电缆扎带, 尼龙 6.6 聚酰胺6.6, 黑色, 201 mm, 4.8 mm, 47 mm
