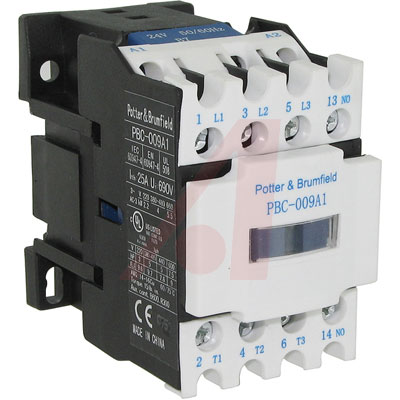

PBC-009A1F7

通用继电器 9A / 110/120V AC coil w/ NO aux

The PBC Series IEC-Type three pole contactor offers normally open, double make contacts in AC-3 ratings for 9 through 80 amps. Each contactor is also equipped with auxiliary contacts rated 360VA for AC-15 loads and 33 watts for DC-13 loads. The PBC series features finger-safe terminals and efficient 50/60 hertz coils. The contactor’s base is designed to mount on a DIN rail or directly to a panel. The modular design of the PBC allows it to readily accept various accessories. PBC models are UL Listed for the U.S. and Canada, and they are CE marked.

**Features**

* Three Pole Switching Main Contacts Plus Integral Auxiliary Contacts

* Designed to Snap onto DIN Rail or Mount Directly to a Panel with Screws

* Efficient 50/60 Hz Coils 50 Hz or 60 Hz Coils Optional

* Finger-Safe IP 20 Terminals

* Modular Design Allows Contactors and Accessories to Snap Together

* Comply with IEC EN60947-4-1 & EN60947-5-1; UL508; CSA22.2 No. 14
