PLT8LH-C0概述

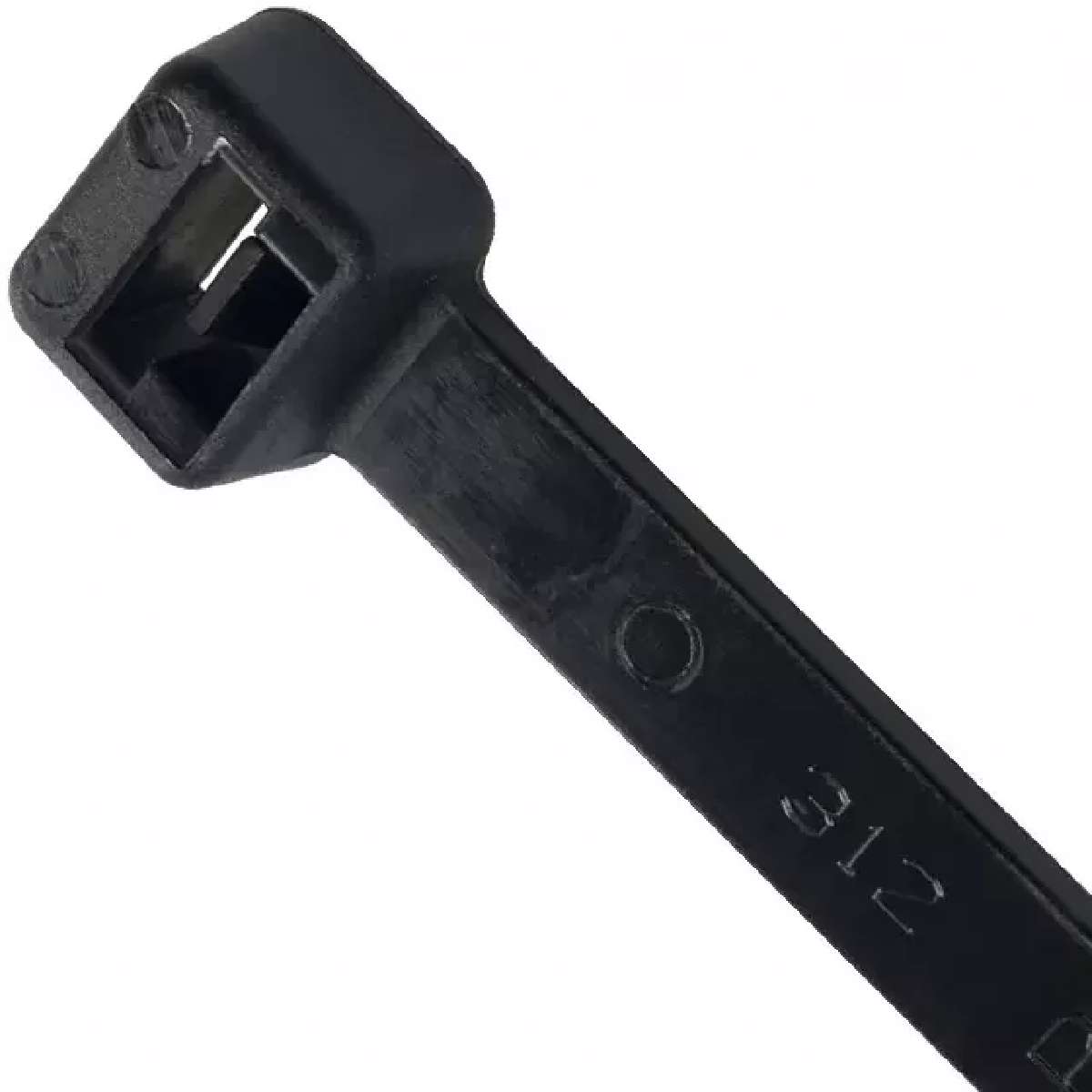

Panduit 黑色 尼龙 66 锁定电缆扎带 电缆扎带, 701mm x 7.6 mm

The PLT series cable ties from are used to bundle cable, hose and pipe bundles. These are available in different materials and flammability ratings. PLT ties are available in various colours and lengths to bundle & secure cables for wide range of applications.

.
Available in Natural Nylon 6.6 or Black Weather and UV Resistant Nylon 6.6
.
Multiple locking tooth design for consistent performance, greater strength and reliability
.
High loop tensile strength exceeds industry standards
.
Flame retardant to UL94V-2
.
UL Listed
.
Miniature, subminiature, intermediate, standard, light heavy and heavy cross section
PLT8LH-C0中文资料参数规格
技术参数

工作温度Max 85 ℃

外形尺寸

长度 701.04 mm

宽度 0.299 in

高度 8.3 mm

物理参数

颜色 Black

材质 Nylon

其他

产品生命周期 Active

包装方式 Bag

制造应用 Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买PLT8LH-C0
型号: PLT8LH-C0
制造商: Panduit 泛达
描述:Panduit 黑色 尼龙 66 锁定电缆扎带 电缆扎带, 701mm x 7.6 mm
替代型号PLT8LH-C0
型号/品牌 代替类型 替代型号对比

PLT8LH-C0

Panduit 泛达

当前型号

当前型号

TMEH-S8-Q0

泛达

完全替代

PLT8LH-C0和TMEH-S8-Q0的区别

ABM3H-A-L

泛达

功能相似

PLT8LH-C0和ABM3H-A-L的区别
