PN5120A0HN1/C2,151

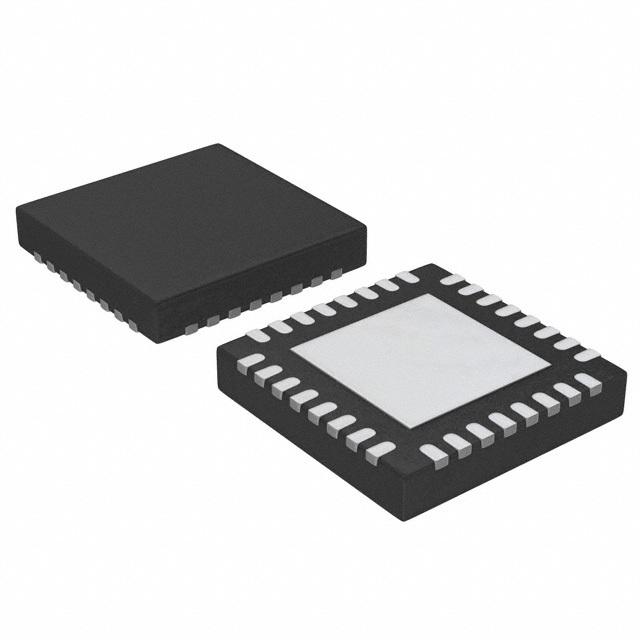

PN5120A0HN1/C2,151图片1
PN5120A0HN1/C2,151图片2
PN5120A0HN1/C2,151图片3
PN5120A0HN1/C2,151图片4
PN5120A0HN1/C2,151图片5
PN5120A0HN1/C2,151图片6
PN5120A0HN1/C2,151图片7
PN5120A0HN1/C2,151概述

NXP  PN5120A0HN1/C2,151  芯片, 收发器模块, NFC, 3.3V, 32HVQFN

The is a highly integrated Transceiver IC for contactless communication at 13.56MHz. This transceiver IC utilizes an outstanding modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56MHz. The PN512 supports all layers of the ISO/IEC 14443B reader/writer communication scheme, given correct implementation of additional components, like oscillator, power supply, coil and provided that standardized protocols, e.g. like ISO/IEC 14443-4 and/or ISO/IEC 14443B anti-collision are correctly implemented. In card operation mode, this transceiver IC is able to answer to a reader/writer command either according to the FeliCa or ISO/IEC 14443A/MIFARE card interface scheme. It generates the digital load modulated signals and in addition with an external circuit the answer can be sent back to the reader/writer.

.
Fast and cost-efficient NFC design start-up
.
Highly integrated analogue circuitry to demodulate and decode responses
.
Buffered output drivers for connecting an antenna with minimum number of external components
.
Integrated RF level detector
.
Integrated data mode detector
.
Supports ISO/IEC 14443 A/MIFARE
.
Supports ISO/IEC 14443 B read/write modes
.
Typical operating distance in read/write mode up to 50mm depending on antenna size and tuning
.
Supports MIFARE Classic encryption in read/write mode
.
ISO/IEC 14443A higher transfer speed communication at 212kbps and 424kbps
.
Contactless communication according to FeliCa scheme at 212kbps and 424kbps
.
Integrated RF interface for NFCIP-1 up to 424kbps
.
Additional power supply to directly supply smart card IC connected via S²C
.
FIFO buffer handles 64 byte send and receive
.
Flexible interrupt modes
.
Hard reset with low power function
.
Power-down mode per software
.
Programmable timer
.
Internal oscillator for connection to 27.12MHz quartz crystal

ESD sensitive device, take proper precaution while handling the device.

PN5120A0HN1/C2,151中文资料参数规格
技术参数

频率 13.56 MHz

电源电压DC 2.50V min

供电电流 60 mA

针脚数 32

工作温度Max 85 ℃

工作温度Min -25 ℃

电源电压 2.5V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 2.5 V

封装参数

引脚数 32

封装 HVQFN-32

外形尺寸

封装 HVQFN-32

物理参数

工作温度 -40℃ ~ 90℃

其他

产品生命周期 Active

包装方式 Each

制造应用 Signal Processing, 工业, Industrial, 信号处理

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买PN5120A0HN1/C2,151
型号: PN5120A0HN1/C2,151
制造商: NXP 恩智浦
描述:NXP  PN5120A0HN1/C2,151  芯片, 收发器模块, NFC, 3.3V, 32HVQFN
替代型号PN5120A0HN1/C2,151
型号/品牌 代替类型 替代型号对比

PN5120A0HN1/C2,151

NXP 恩智浦

当前型号

当前型号

PN5120A0HN1/C2,118

恩智浦

完全替代

PN5120A0HN1/C2,151和PN5120A0HN1/C2,118的区别
