192W 开关调节器, 29 → 80V输入, 24.14V输出, 8A输出

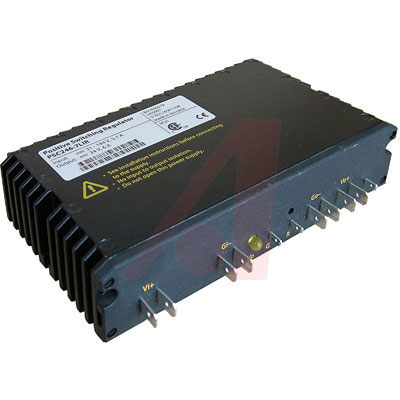

**Power One - PSC Series**
The PSC series switching regulators are power supplies for electronic systems where no input to output isolation is required. These switching regulators are reliable, have an excellent dynamic response and are highly efficient. Models with input voltages up to 144 V are designed for secondary switched and battery driven mobile applications. The PSC converters are wall or chassis mounted and are suitable for railway applications according to EN 50155 and EN 50121.
得捷:
DC/DC CONVERTER 24V 192W
艾睿:
Module DC-DC 40VIN 1-OUT 24V 8A 192W 9-Pin
Allied Electronics:
Converter; DC-DC; Out 24VDC; In 29 to 80VDC; Thru-Hole; Enclosed; Commercial; 1
Verical:
Module DC-DC 40VIN 1-OUT 24V 8A 192W 9-Pin
MASTER:
Module DC-DC 1-OUT 24V 8A 192W 9-Pin
Electro Sonic:
Module DC-DC 1-OUT 24V 8A 192W 9-Pin
额定功率 192 W
输出接口数 1
输出电压 24 V
输出电流 8 A
输出功率 192 W
输入电压Max 80 V
输入电压Min 29 V
输出电流Max 8 A
额定功率Max 192 W
工作温度Max 71 ℃
工作温度Min -25 ℃
输入电压 29V ~ 80V
安装方式 Through Hole
引脚数 9
封装 Module
高度 32.2 mm
封装 Module
工作温度 -25℃ ~ 71℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业），铁路, ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8542390000
