PM3GD概述

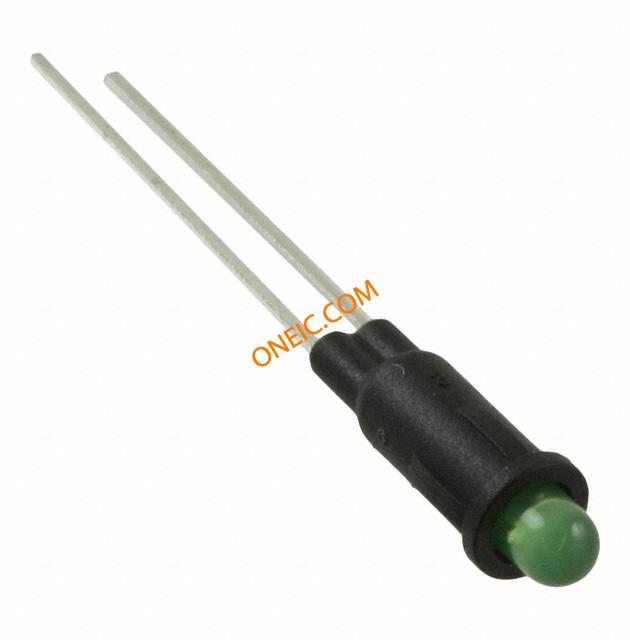

BIVAR  PM3GD  发光二极管指示灯, 4.14MM, 绿色, 2.1V

** Panel Mount Indicators**

Bivar offers a wide variety of Panel Mount Indicators with a wide variety of different options and configurations.

**Metal LED Indicators**

Metal panel mount LED indicators in a range of configurations including 3mm and 5mm LEDs in a variety of colors, lens options, and viewing angles.

**Plastic LED Indicators**

Plastic panel mount LED indicators with a variety of configurations including 3mm and 5mm sizes and press-fit with rectangular LED and housing.

PM3GD中文资料参数规格
技术参数

工作电压 2.1 VDC

正向电压 2.1 V

波长 568 nm

发光强度 25 mcd

视角 40°

峰值波长 568 nm

测试电流 20 mA

正向电流 30 mA

正向电流Max 30 mA

工作温度Max 85 ℃

工作温度Min -25 ℃

封装参数

引脚数 2

物理参数

颜色 Green

其他

产品生命周期 Active

包装方式 Each

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买PM3GD
型号: PM3GD
制造商: Bivar
描述:BIVAR  PM3GD  发光二极管指示灯, 4.14MM, 绿色, 2.1V
