PV18-56RB-2K

PV18-56RB-2K图片1
PV18-56RB-2K图片2
PV18-56RB-2K图片3
PV18-56RB-2K图片4

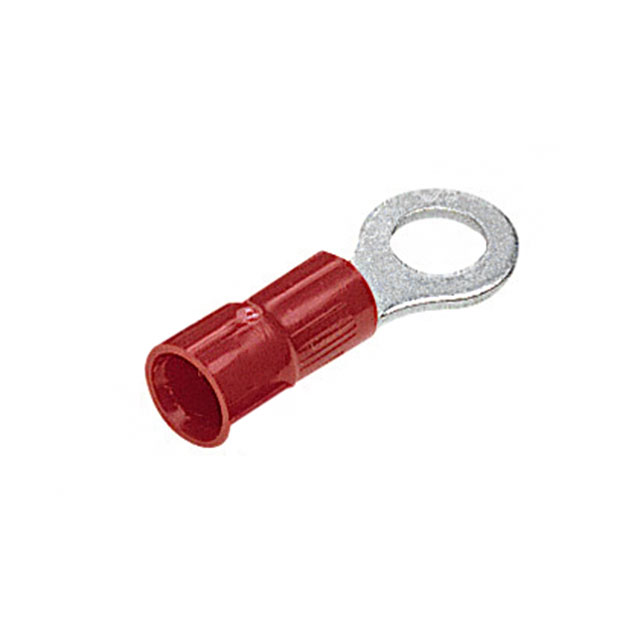

PV18-56RB-2K图片5
PV18-56RB-2K概述

环形端子, 乙烯基 绝缘, 22 - 18

端子 - 环形 5/16 接线柱 圆形 18-22 AWG 压接


得捷:
CONN RING CIRC 18-22AWG #5/16


贸泽:
端子 VYL-RING 22-18 RED 5/16


e络盟:
环形端子, 乙烯基 绝缘, 22 - 18


艾睿:
Using the ring tongue terminal PV18-56RB-2K wire terminal from Panduit is the easiest way to connect to your terminal blocks. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 26.9 mm long and 11.68 mm. Its wire is 18-22 AWG.


Verical:
Ring Tongue Terminal 18-22AWG Copper Red 26.9mm Tin T/R


MASTER:
Ring Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 22 – 18 AWG wire range, 5/16" stud size.


Electro Sonic:
Ring Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 22 – 18 AWG wire range, 5/16" stud size.


PV18-56RB-2K中文资料参数规格
技术参数

线规 18AWG ~ 22AWG

工作温度Max 105 ℃

额定电压Max 600 V

外形尺寸

长度 26.92 mm

宽度 11.7 mm

厚度 0.79 mm

物理参数

颜色 Red

触点材质 Copper

材质 Copper

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买PV18-56RB-2K
型号: PV18-56RB-2K
制造商: Panduit 泛达
描述:环形端子, 乙烯基 绝缘, 22 - 18
