PM2120-181K-RC

大电流SMD功率电感 High Current SMD Power Inductors

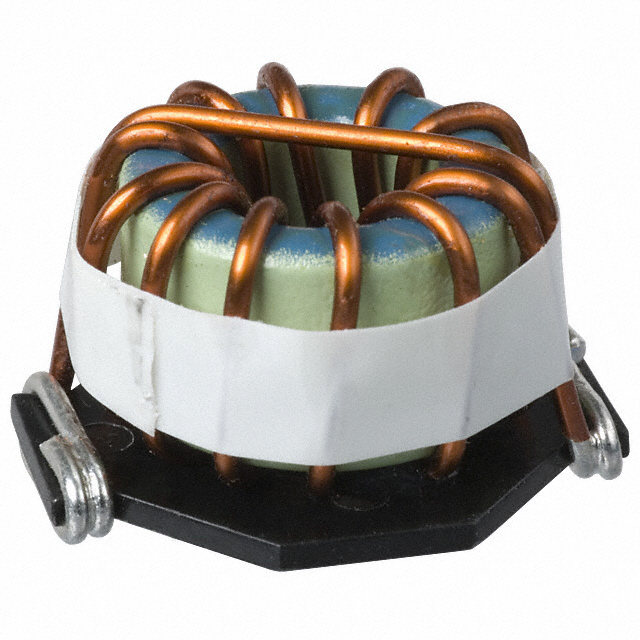

180µH Unshielded Toroidal Inductor 5.3A 47mOhm Max Nonstandard

得捷:
FIXED IND 180UH 5.3A 47 MOHM SMD

立创商城:
180uH ±10% 5.3A 47mΩ

贸泽:
Fixed Inductors 180uH 10%

艾睿:
Save valuable space on a PCB with this power PM2120-181K-RC surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -55 °C to 105 °C. Its test frequency is 1K Hz. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 5.3 A with a maximum resistance of 47m Ohm. This product is 31 mm long, 21.08 mm tall and 25.4 mm deep. It has a tolerance of 10%. It has an inductance of 180u H.

安富利:
Ind High Current Wirewound 180uH 10% 1KHz Iron 5.3A Box

Chip1Stop:
Ind High Current Wirewound 180uH 10% 1KHz Iron 5.3A Box

Verical:
Inductor Power Wirewound 180uH 10% 1KHz Iron 5.3A 47mOhm DCR Box

Newark:
# BOURNS JW MILLER  PM2120-181K-RC  Inductor, Power, PM2120 Series, 180 µH, 5.3 A, 0.047 ohm, ± 10%, 30.5mm x 25.4mm x 21.08mm

MASTER:
Inductor Power Wirewound 180uH 10% 1KHz Iron 5.3A 47mOhm DCR Box

Electro Sonic:
Inductor Power Wirewound 180uH 10% 1KHz Iron 5.3A 47mOhm DCR Box
