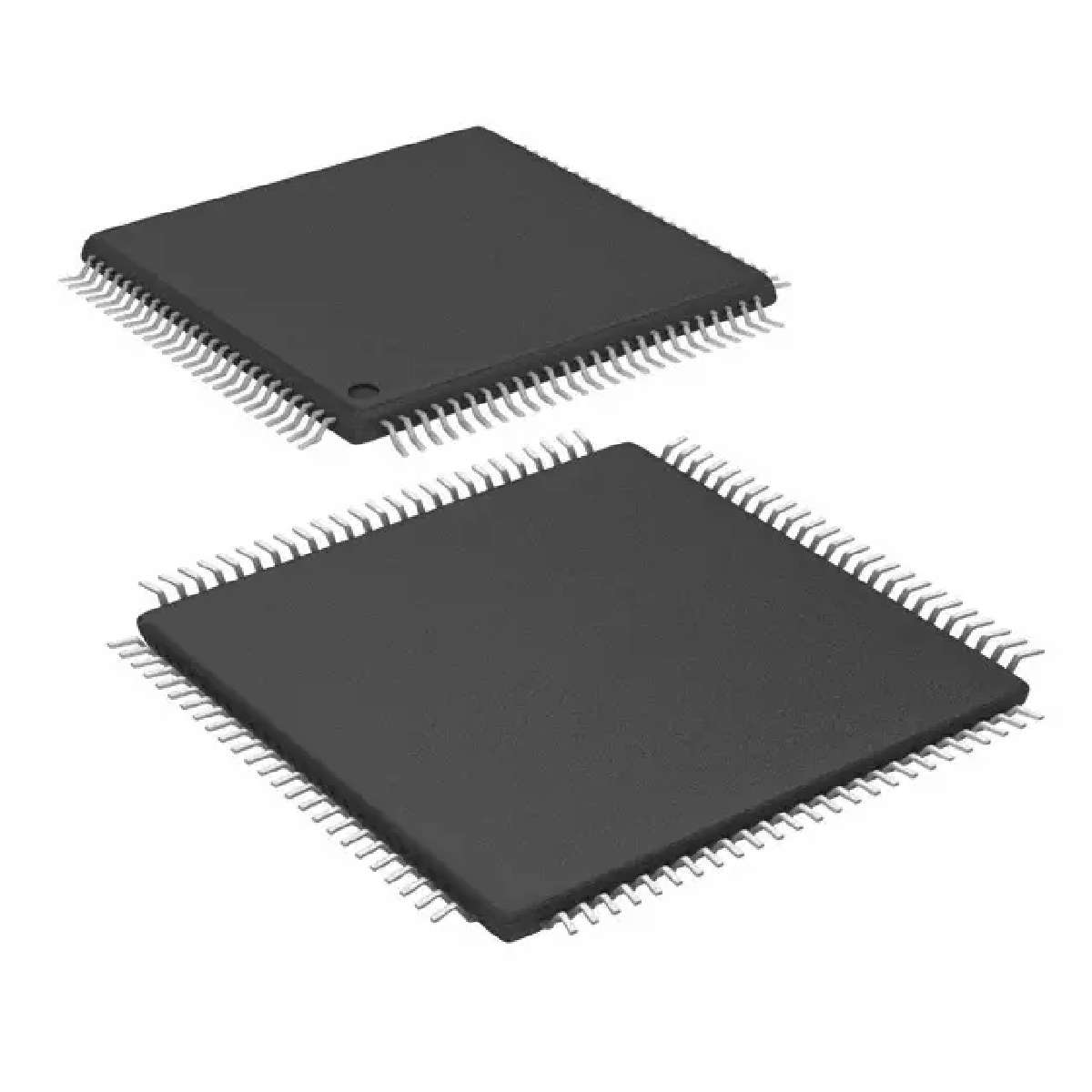

PIC24FJ192GA110T-I/PT

IC MCU 16Bit 192KB FLASH 100TQFP

Special Microcontroller Features:

• Operating Voltage Range of 2.0V to 3.6V

• Self-Reprogrammable under Software Control

• 5.5V Tolerant Input digital pins only

• Configurable Open-Drain Outputs on Digital I/O

• High-Current Sink/Source 18 mA/18 mA on all I/O

• Selectable Power Management modes:

\- Sleep, Idle and Doze modes with fast wake-up

• Fail-Safe Clock Monitor Operation:

\- Detects clock failure and switches to on-chip FRC oscillator

• On-Chip LDO Regulator



Power Management:

• On-Chip 2.5V Voltage Regulator

• Switch between Clock Sources in Real Time

• Idle, Sleep and Doze modes with Fast Wake-up and

Two-Speed Start-up

• Run mode: 1 mA/MIPS, 2.0V Typical

• Standby Current with 32 kHz Oscillator: 2.6 A, 2.0V Typical

• Power-on Reset POR, Power-up Timer PWRT,

Low-Voltage Detect LVD and Oscillator Start-up Timer

OST

• Flexible Watchdog Timer WDT with On-Chip

Low-Power RC Oscillator for Reliable Operation

• In-Circuit Serial Programming™ ICSP™ and

In-Circuit Debug ICD via 2 Pins

• JTAG Boundary Scan Support

• Brown-out Reset BOR

• Flash Program Memory:

\- 10,000 erase/write cycle endurance minimum

\- 20-year data retention minimum

\- Selectable write protection boundary

\- Write protection option for Flash Configuration Words

High-Performance CPU:

• Modified Harvard Architecture

• Up to 16 MIPS Operation at 32 MHz

• 8 MHz Internal Oscillator

• 17-Bit x 17-Bit Single-Cycle Hardware Multiplier

• 32-Bit by 16-Bit Hardware Divider

• 16 x 16-Bit Working Register Array

• C Compiler Optimized Instruction Set Architecture with Flexible Addressing modes

• Linear Program Memory Addressing, Up to 12 Mbytes

• Linear Data Memory Addressing, Up to 64 Kbytes

• Two Address Generation Units for Separate Read and Write Addressing of Data Memory

Analog Features:

• 10-Bit, Up to 16-Channel Analog-to-Digital A/D Converter at 500 ksps:

\- Conversions available in Sleep mode

• Three Analog Comparators with Programmable Input/Output Configuration

• Charge Time Measurement Unit CTMU
