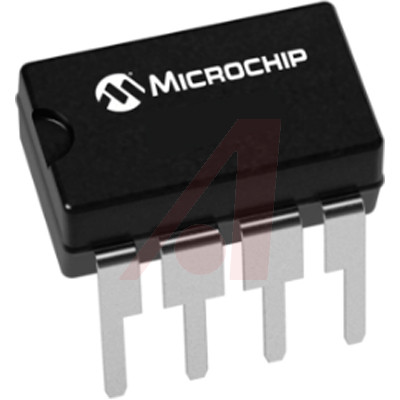

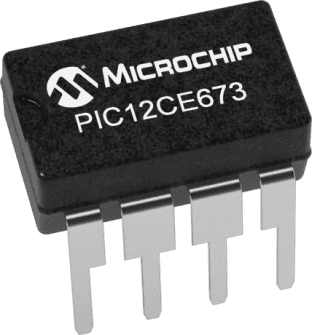

MICROCHIP PIC12CE673-04/P 微控制器, 8位, 一次性可编程, PIC12CE67x, 4 MHz, 1.75 KB, 128 Byte, 8 引脚, DIP
The is a mid-range PIC12 family 8-bit powerful 400 nanosecond instruction execution yet easy-to-program only 35 single word instructions CMOS one-time programmable OTP based Microcontroller packs powerful PIC®RISC architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 1.75kB of addressable program memory size, 128bytes of data memory size, 6 general-purpose I/O pins and 4-channel 10-bit analog-to-digital A/D converter. This device operates at a maximum frequency of 4MHz with wide operating voltage of 2.5 to 5.5V.
频率 4 MHz
电源电压DC 5.00 V, 5.50 V max
工作电压 3V ~ 5.5V
针脚数 8
时钟频率 4 MHz
RAM大小 128 b
位数 8
耗散功率 700 mW
I/O引脚数 6
存取时间 4.00 µs
内核架构 PIC
内存容量 1000 B
内核子架构 PIC12
模数转换数ADC 1
输入/输出数 6 Input
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 700 mW
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 8
封装 PDIP-8
长度 9.78 mm
宽度 6.35 mm
高度 3.3 mm
封装 PDIP-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
制造应用 电机驱动与控制, Industrial, Automotive, Consumer Electronics, , Consumer Electronics, 工业, 消费电子产品, Motor Drive & Control, 医用, Lighting, Automotive, Security, 照明, Medical, Industrial, 安全, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC12CE673-04/P Microchip 微芯 | 当前型号 | 当前型号 |
PIC12F675-I/P 微芯 | 类似代替 | PIC12CE673-04/P和PIC12F675-I/P的区别 |
PIC12C671-04/P 微芯 | 类似代替 | PIC12CE673-04/P和PIC12C671-04/P的区别 |
PIC12C671-04I/P 微芯 | 类似代替 | PIC12CE673-04/P和PIC12C671-04I/P的区别 |
