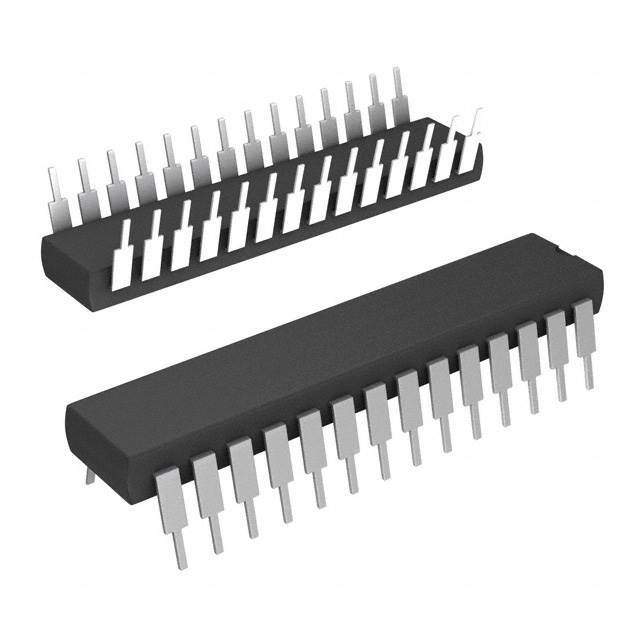

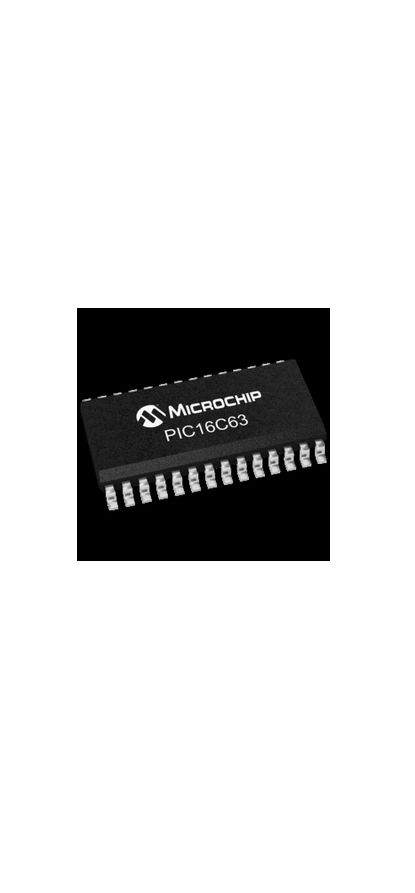

PIC16C63-04/SP

MICROCHIP  PIC16C63-04/SP  微控制器, 8位, 一次性可编程, PIC16C6xx, 20 MHz, 7 KB, 192 Byte, 28 引脚, NDIP

The is a PIC16 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program only 35 single word instructions CMOS one-time programmable OTP based Microcontroller packs powerful PIC®RISC architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 192bytes of data memory size and 22 general-purpose I/O pins. This device operates at a maximum frequency of 4MHz with wide operating voltage of 2.5 to 6V.

.

35 14-bit wide easy instructions to learn

.

8 level hardware stack

.

Interrupt capability

.

Power-on reset POR

.

Power-up timer PWRT

.

Oscillator start-up timer OST

.

Watch dog timer WDT

.

Two 8-bit digital timers

.

Programmable code-protection

.

Power saving SLEEP mode

.

Brown-out reset BOR

.

One 16-bit digital timers

.

2x Capture/Compare/PWM CCP
