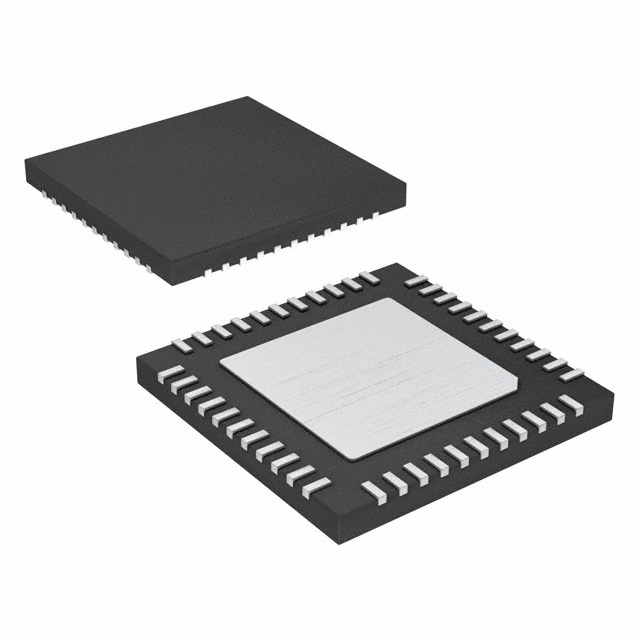

PIC18F46K20-I/ML

MICROCHIP  PIC18F46K20-I/ML  微控制器, 8位, 闪存, AEC-Q100, PIC18FxxKxx, 64 MHz, 64 KB, 3.84 KB, 44 引脚, QFN

The is a baseline PIC18 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®RISC architecture. This product utilize a 12-bit program word and provide the right amount of features including 64kB of addressable program memory size, 3936bytes of data memory size, 36 general-purpose I/O pins, two comparators and 13-channel 10-bit analog-to-digital A/D converter. This device operates at a maximum frequency of 64MHz wide operating voltage of 1.8 to 3.6V.

.

Simple 33 12-bit wide instruction set

.

2 level hardware stack

.

1 8-bit file select register

.

Smallest form factor

.

Programmable brown-out reset BOR

.

Programmable low voltage detection

.

Power on reset POR

.

32kHz to 16MHz internal oscillator

.

Watch dog timer WDT

.

Internal voltage reference Bandgap

.

One 8-bit digital timer

.

Three 16-bit digital timers

.

1x Capture/Compare/PWM CCP

.

1x Enhanced Capture/Compare/PWM ECCP

.

Local interconnect network LIN

.

10x Capacitive touch channels

.

In-Circuit Serial Programming™ ICSP™

.

256bytes of EEPROM data memory
