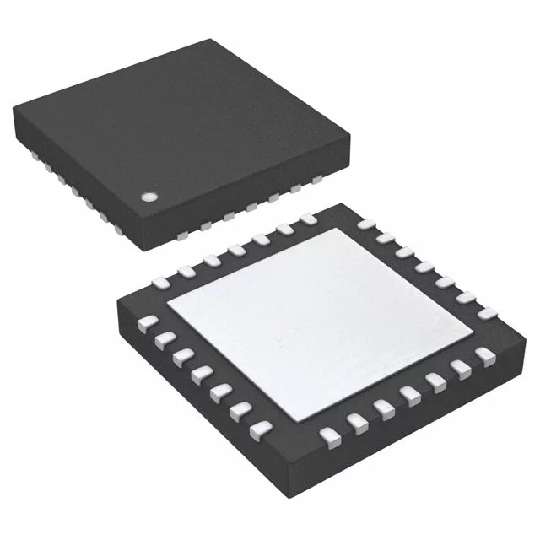

MICROCHIP PIC24EP256GP202-I/MM 微控制器, 16位, AEC-Q100, PIC24EP, 70 MHz, 256 KB, 32 KB, 28 引脚, QFN
The is a general purpose PIC24E family highest performance and excellent code density 16-bit Microcontroller packs powerful PIC®RISC architecture with up to 70 MIPS of performance at 3.3V. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 256kB of addressable program memory size, 32768bytes of data memory size, 21 general-purpose I/O pins, 6-channel 10/12-bit analog-to-digital A/D converter and one 4-bit digital-to-analog D/A converter. This device operates at a maximum frequency of 70MHz with wide operating voltage of 3 to 3.6V.
频率 70 MHz
电源电压DC 3.00V min
针脚数 28
时钟频率 70.0 MHz
RAM大小 32 KB
位数 16
模数转换数ADC 1
输入/输出数 21 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 28
封装 QFN-28
封装 QFN-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Lighting, 照明, Audio, 医用, Multimedia, 通信与网络, 消费电子产品, Consumer Electronics, 车用, 安全, Communications & Networking, Motor Drive & Control, Automotive, 多媒体, 电机驱动与控制, Security, Medical, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC24EP256GP202-I/MM Microchip 微芯 | 当前型号 | 当前型号 |
DSPIC33EP128GP502-I/MM 微芯 | 类似代替 | PIC24EP256GP202-I/MM和DSPIC33EP128GP502-I/MM的区别 |
PIC24EP256GP202-E/MM 微芯 | 类似代替 | PIC24EP256GP202-I/MM和PIC24EP256GP202-E/MM的区别 |
DSPIC33EP128GP502T-I/MM 微芯 | 类似代替 | PIC24EP256GP202-I/MM和DSPIC33EP128GP502T-I/MM的区别 |
