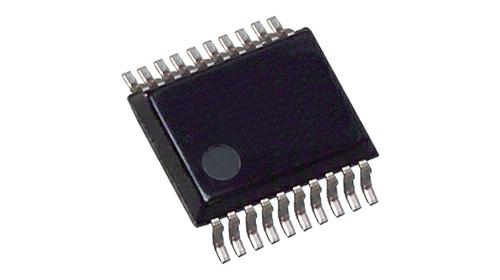

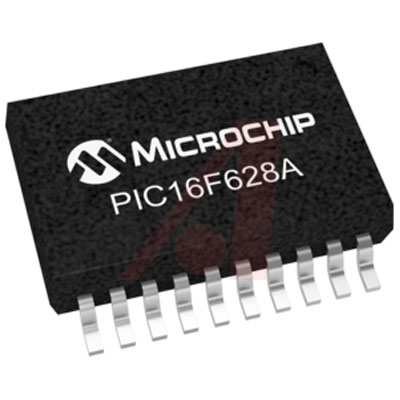

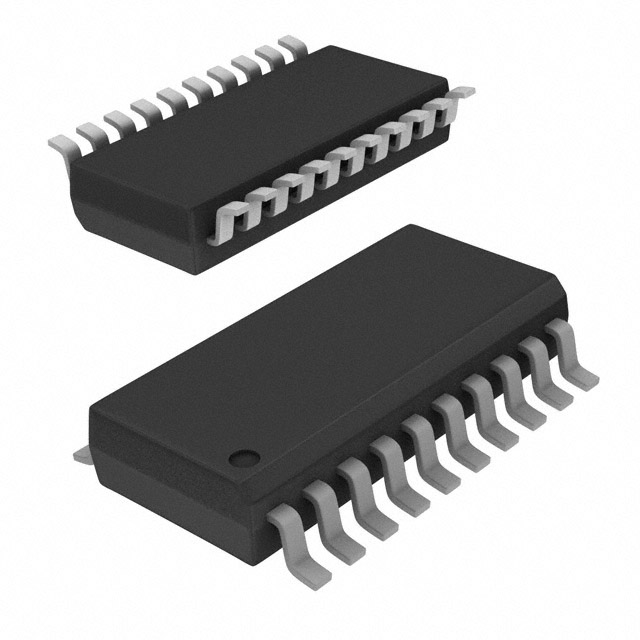

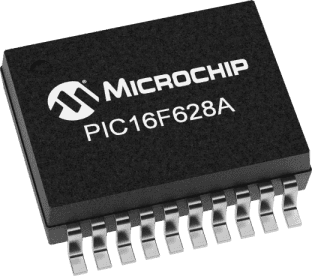

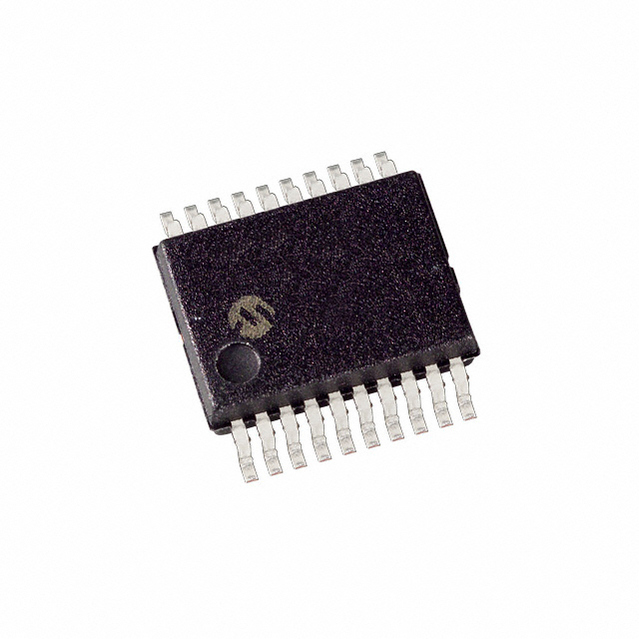

PIC16LF628A-I/SS

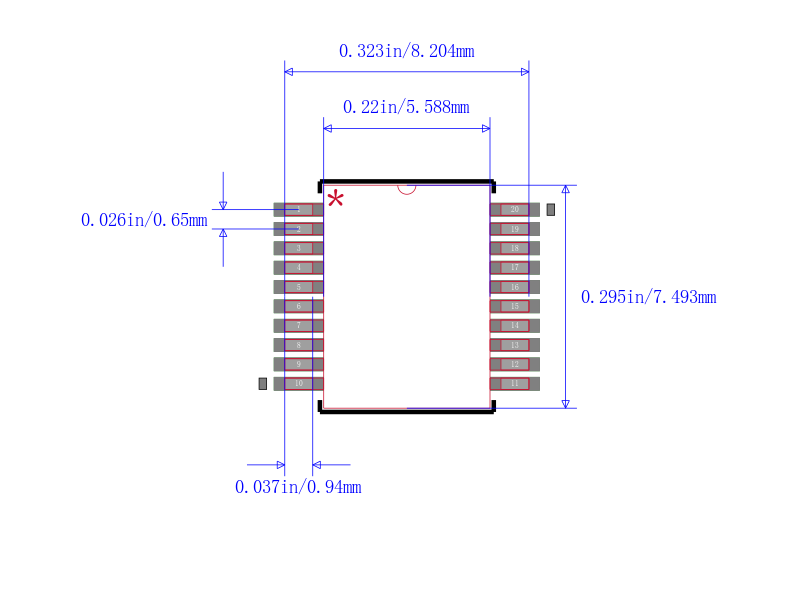

MICROCHIP  PIC16LF628A-I/SS  微控制器, 8位, 闪存, PIC16LF6xx, 20 MHz, 3.5 KB, 224 Byte, 20 引脚, SSOP

The is a PIC16 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program only 35 single word instructions CMOS flash based Microcontroller packs powerful PIC®RISC architecture with nanoWatt technology. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 224bytes of data memory size, two comparator and 16 general-purpose I/O pins. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.

.

35 14-bit wide easy instructions to learn

.

8 level hardware stack

.

1 9-bit file select register

.

Hardware interrupt handling

.

In-Circuit Serial Programming™ ICSP™

.

Power on reset POR

.

Power-up timer PWRT

.

Oscillator start-up timer OST

.

Programmable code protection

.

Power saving SLEEP mode

.

In-circuit debugging via two pins

.

Brown-out reset BOR

.

128bytes of EEPROM data memory

.

Two 8-bit digital timers

.

One 16-bit digital timers

.

Programmable weak pull-ups on PORTB

.

Multiplexed master Clear/Input-pin

.

Watchdog timer WDT

.

1x Capture/Compare/PWM ECCP
