PSU203

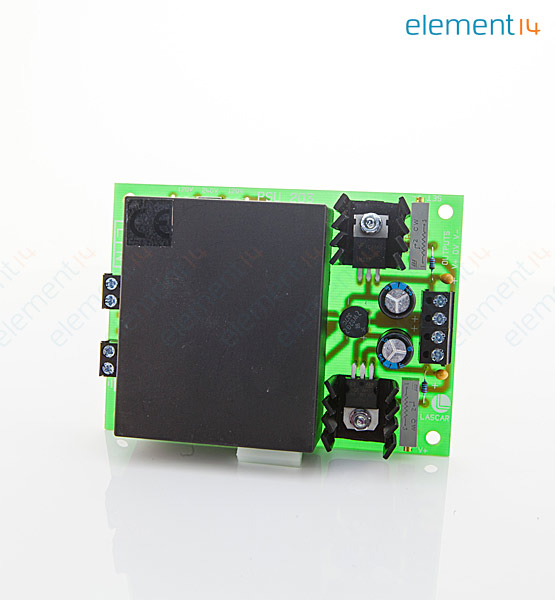

PSU203图片1
PSU203图片2
PSU203概述

LASCAR  PSU203  线性电源, 低型, 固定输出, 110 V, 250 V, 15 V, 150 mA

The is a 150mA/5V fixed double-output adjustable-voltage twin-rail Power Supply is a compact, split open mains power supply unit designed primarily for OEM use. The linear regulator ICs used have over-current and over-temperature protection. The unit is normally supplied connected for 240V operation. For 120V operation remove 240V link and insert both 120V links. For safe operation, the unit must be installed in an enclosure which prevents accidental contact with hazardous voltages, by providing appropriate insulation or guarding. If the enclosure is made of a conducting material or the internal surfaces have a conductive coating, ensure that no part of the power supply will come into contact with it and maintain an air gap clearance of minimum 10mm.

.
Simple screw-terminal connection
.
Low profile
.
Encapsulated mains transformer
.
Positive and negative adjustable rails
.
20-turn Trimmers for accurate setting
.
1% Maximum load regulation
.
1% Maximum line regulation
.
5mV Ripple
.
0 to 70°C Operating temperature range
PSU203中文资料参数规格
技术参数

输出接口数 2

输出电压 15 V

输出电流 150 mA

输入电压AC Max 250 v

输入电压AC Min 110 v

封装参数

安装方式 Chassis

外形尺寸

长度 105 mm

宽度 76 mm

高度 22 mm

其他

产品生命周期 Active

制造应用 电源管理, Power Management

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买PSU203
型号: PSU203
制造商: Lascar
描述:LASCAR  PSU203  线性电源, 低型, 固定输出, 110 V, 250 V, 15 V, 150 mA
