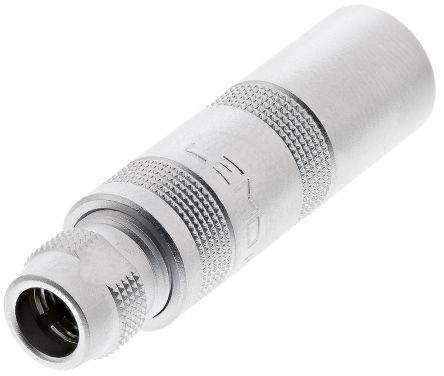

LEMO PCA.0S.302.CLLC44 圆形连接器, 0S系列, 插座, 2 触点, 公、母, 焊接, 电缆安装
S 系列直向插座，带电缆夹
配有公和母触点，用于焊接。
设计可连接到插头。 也可用于创建平行接头。
随附电缆夹持钳。
### S series cylindrical connectors
Series of metal multi-pin connectors with very compact dimensions.
Fitted with a push-pull locking system, for great speed of use. Absolute protection against vibration, shocks and accidental pulling on the cable.
Available in 3 different sizes 0S, 1S and 2S, with different contact layouts.
The correct keyway is ensured by the insulating unit both male and female.
触点数 2
极性 Female
触点电镀 Gold
额定电流 10 A
额定电流Max 10 A
工作温度Max 250 ℃
工作温度Min -55 ℃
安装方式 Solder
产品生命周期 Active
制造应用 Aerospace, Defence, Military, Communications & Networking, Test & Measurement, 医用, 车用, 国防, Medical, 通信与网络, 军用与航空, Automotive, 测试与测量
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
