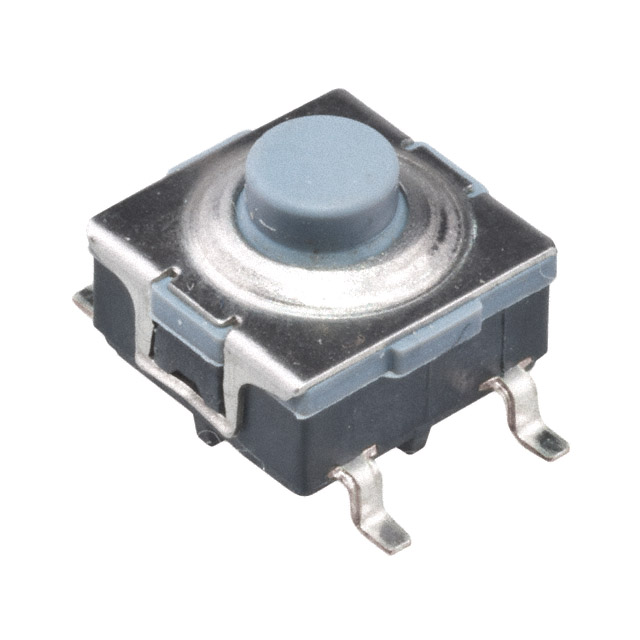

PWR70Q1S

C & K COMPONENTS  PWR70Q1S  按钮开关, SPST, 瞬时式弹簧复位, 125 V, 2 A, SMD

The is a SPST Pushbutton Switch and designed for demanding power applications. This highly reliable switch is vibration resistant, making them ideal for challenging automotive, industrial and white goods environments. The pushbutton switch accommodates the voltage range of 20 to 250VAC, a current range of 10mA to 2A, with a maximum contact resistance of 100mR. The PWR series handles inrush loads up to 7A. The nominal operating force is 7N and operating travel is 1.0mm.

.

Movable Contact with Redundant High Power Contact Points to Form a Momentary

.

SPST-NO Contact Configuration

.

Double Break Switch

.

Rubber Actuator Provides Sealing and Tactile Feel

.

Small SMT Packaging Allows Applications to Integrate Power and Signal Switch on Same PCB

.

IP65 Protection rating
