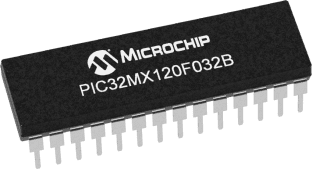

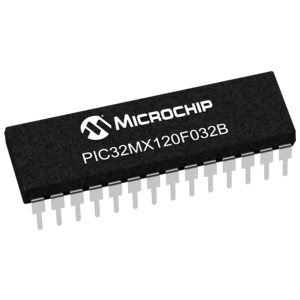

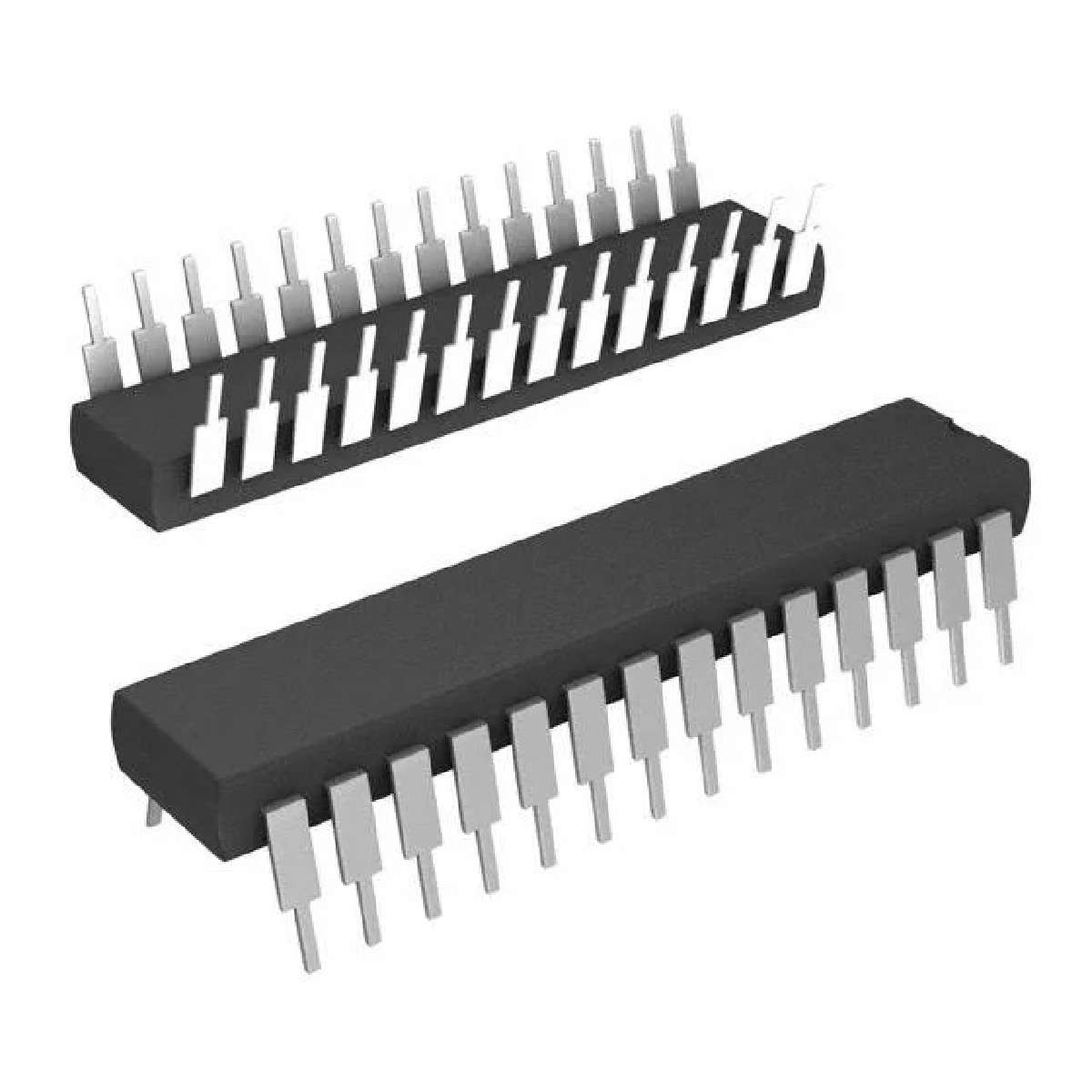

PIC32MX120F032B-I/SP

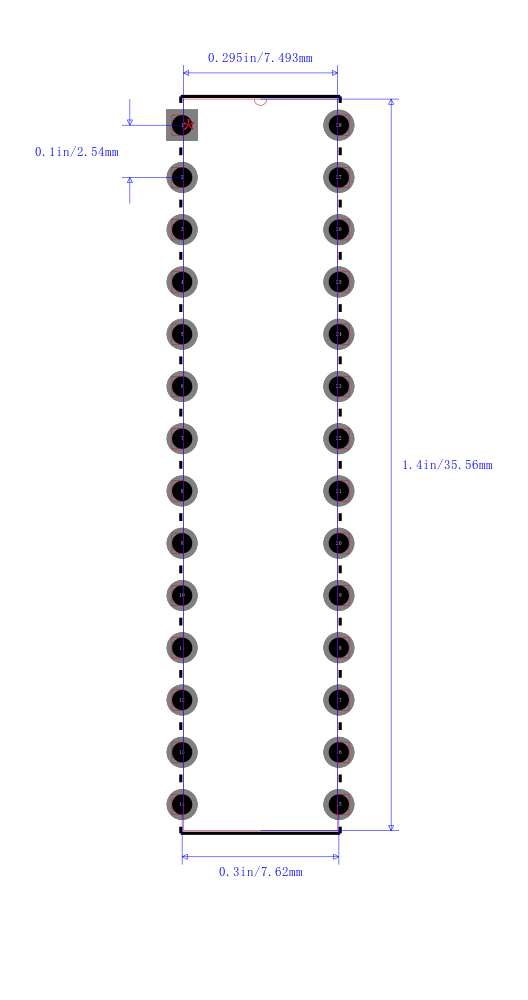

MICROCHIP  PIC32MX120F032B-I/SP  微控制器, 32位, PIC32, 40 MHz, 32 KB, 8 KB, 28 引脚, SDIP

**’s Family of Microcontroller Series - PIC32MX:**

PIC32MX family combines 32-bit performance with a large memory configuration and rich integrated peripheral set at a low cost to address embedded application space ranging from simple general purpose embedded control to more advanced Audio, Connectivity and Graphical embedded applications.

PIC32MX MCUs offer wide-range of memory configuration and rich peripheral set at low cost. PIC32MX family combines 32-bit performance with a large memory configuration and rich integrated peripheral set at a low cost to address embedded application space ranging from simple general purpose embedded control to more advanced Audio, Connectivity and Graphical embedded applications.

**Features:**

* MIPS32 M4K Core with up to 50 MHz/83 DMIPS

* Up to four SPI/I2S interfaces for audio processing and playback

* USB device/host/OTG

* CAN 2.0B with 1 Mbps bit rates for industrial/automotive applications

* Enhanced PMP for graphics or external memory

* Support for mTouch capacitive touch buttons and sliders

* Up to fi ve UARTs, three analog comparators and two I2C™ buses

* 10-bit, 1 Msps, up to 48-channel ADC

* Peripheral Pin Select PPS allows function remapping

* Temperature range: -40°C to 105°C
