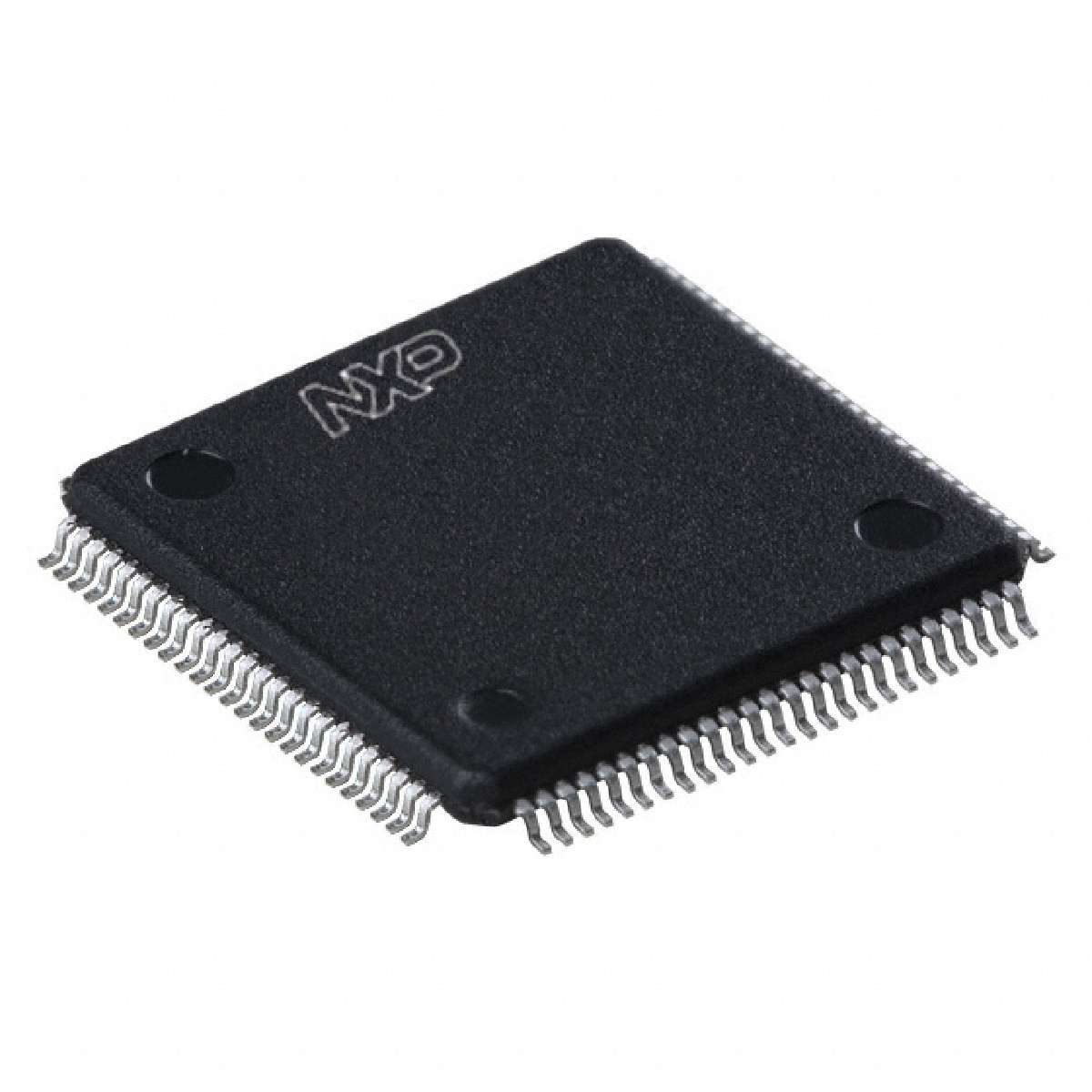

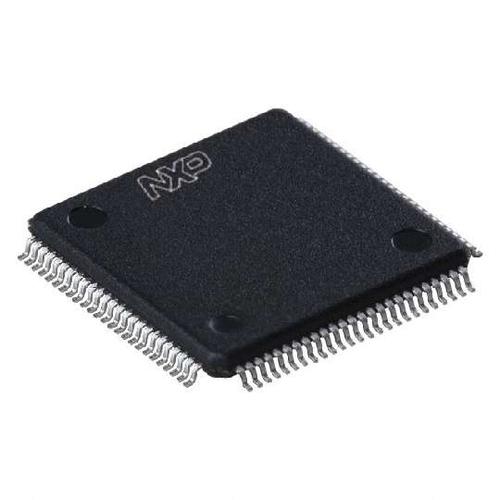

NXP PRH601HL/C1,557 芯片, 射频识别阅读器, 13.56MHZ, LQFP-100
Overview
The PRH601 is an integrated RF Identification reader module for contactless communication at 13.56 MHz and 125 kHz. It implements an additional 32-bit ARM CortexM0 microcontroller. For new designs based on 13.56 MHz only, we recommend PN7462, PN7362, PN7360.
MoreLess
## Features
* Includes ’s intellectual property licensing rights required for ISO/IEC 14443A implementation
* The PRH601 is integrating multiple functions in a single small formfactor package
* Reduced PCB size for development of systems with small physical dimensions
* Multi frequence reader support available in single package
* Integrated microcontroller allows implementation of customer firmware
* Fast and cost-efficient NFC design startup
## Target Applications
* Small formfactor access systems
* Industrial devices with high RF performance requirements
* Multi frequency applications with 125 kHz and 13.56 MHz support
## Features
频率 13.56 MHz
电源电压DC 3.00V min
针脚数 100
耗散功率 2000 mW
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 2000 mW
电源电压 3V ~ 5.5V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 100
封装 LQFP-100
封装 LQFP-100
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 5A992
