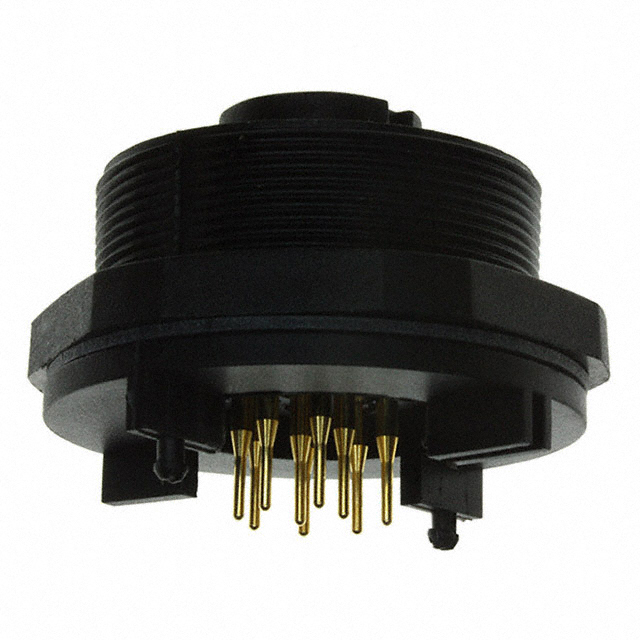

9孔,IP68后面板安装PCB连接器
Flex Cable Connector, 12 Poles, 5 A Current Rating
The Buccaneer range of environmentally sealed connectors are specifically designed for harsh applications where salt water, dust, oil, or spray could present a hazard. Dust and water-proof to IP68 these robust connectors have UL, CSA and VDE approvals. Sealing IP68, BS 5490 — tested @ 15 Lb./sq. in. 10 m depth for two weeks; BSEN 60529 — 1992 tested @ 140 Lbs./sq. in. 100 m depth for 12 hours.
* UL, CSA and VDE Approved
* Sealing IP68, BS 5490 and BSEN 60529
* UL94-HB Flammability Rating
* Glass-Filled Nylon Housing
* 38 mm Overall Diameter
* -20 to +70°C Operating Temperature Range
* Leading Ground Contact for 3-Way Versions
* Sealing Caps to Maintain IP68 When Not in Use
* Single Nut Fixing
* Mates with Cable Connector
* Pre Loaded Gold Plated Contacts
