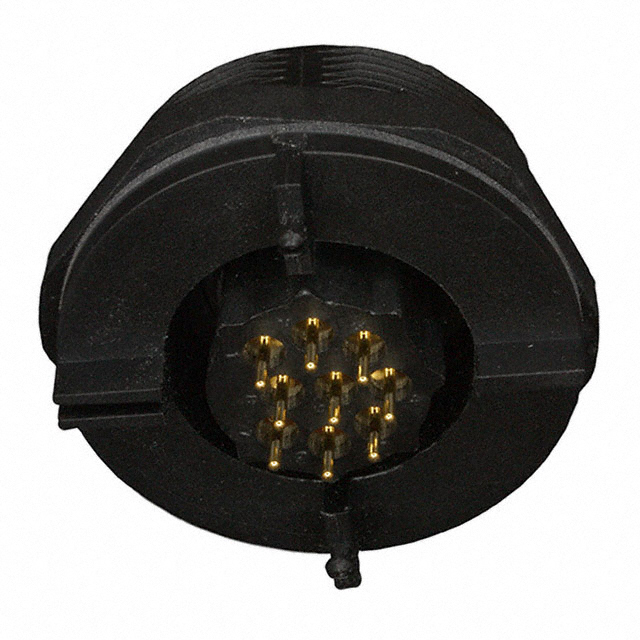

9针,IP68后面板安装PCB连接器
9（电源） 针位圆形 插座，公形引脚 焊接
得捷:
CONN RCPT MALE 9POS GOLD SOLDER
欧时:
9路 通孔 直向 圆形连接器 插头触点 Buccaneer系列
贸泽:
Standard Circular Connector 9 POLE PCB PLUG
艾睿:
Conn Circular PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port Buccaneer® Bulk
Allied Electronics:
Connector, Circular IP68; 9; PCB; 5 A; 150 VAC/VDC; lt 10 Milliohms; IP 68
Chip1Stop:
Conn Buccaneer PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port
Verical:
Conn Circular PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port Buccaneer® Bulk
Newark:
# BULGIN PX0707/P/09 Circular Connector, Buccaneer Standard Series, Panel Mount Plug, 9 Contacts, Solder Pin, Threaded
MASTER:
Conn Circular PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port Buccaneer®
Online Components:
Conn Circular PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port Buccaneer®
力源芯城:
9针,IP68后面板安装PCB连接器
Electro Sonic:
Conn Circular PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port Buccaneer®
触点数 9
极性 Male
触点电镀 Gold
额定电压DC 150 V
额定电压AC 150 V
额定电流 5 A
绝缘电阻 100 MΩ
易燃性等级 UL 94 V-0
针脚数 9
额定电流Max 5 A
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压 150VAC, 150VDC
接触电阻Max 10 mΩ
安装方式 Through Hole
颜色 Black
触点材质 Copper Alloy
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
