PMODJSTK

DIGILENT  PMODJSTK  模块, PMOD, 二轴电阻性操纵杆

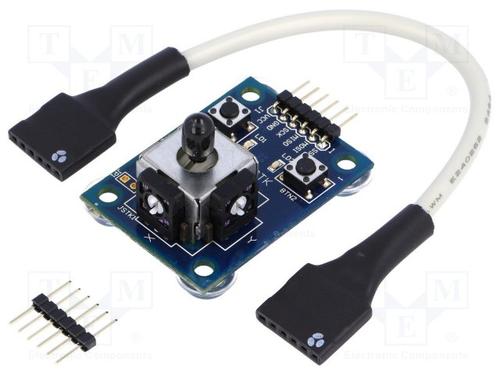

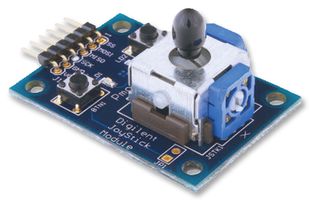

joystick module is designed to be a versatile user interface that can be used in a wide variety of projects. The PmodJSTK has an Atmel ATtiny24 Microcontroller with 2K Flash, 128b EEProm, 128b of internal SRAM and a CTS252 Two Axis Resistive Joystick. The joystick also incorporates a centre button. This centre button, along with the two push buttons, are read by the microcontroller. Also, PmodJSTK has two programmable LEDs located on the board that can provide additional information to the user.

.

Two axis resistive joystick CTS 252A103B60NB

.

Joystick also functions as a push button

.

Two additional user buttons
