PXP7010/10P/CR/0709

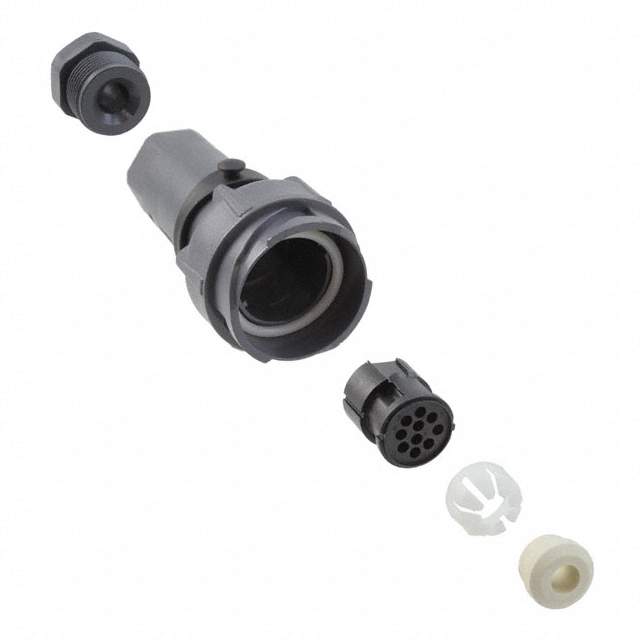

PXP7010/10P/CR/0709图片1
PXP7010/10P/CR/0709图片2
PXP7010/10P/CR/0709图片3
PXP7010/10P/CR/0709图片4

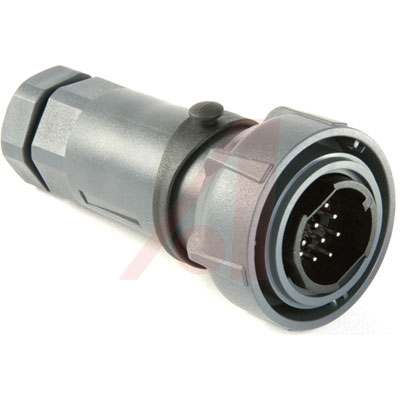

PXP7010/10P/CR/0709图片5
PXP7010/10P/CR/0709图片6
PXP7010/10P/CR/0709概述

标准环形连接器 10 pole Flex Conn male crimp term

**7000 Series Buccaneer Plastic Cable Plug Connectors**

These thermoplastic Buccaneer 7000 series circular cable connector plugs combine the ease of use of a quick coupling mechanism with excellent environmental sealing for signal and mains power. These circular connectors are fully waterproof and are ideal for applications where ingress of dirt and water must be avoided and where ease of connection, space and appearance are important considerations. Bulgin 7000 series cable connectors also feature self extinguishing thermoplastic material and are ideal for blind mating applications.

PXP7010/10P/CR/0709中文资料参数规格
技术参数

触点数 10

极性 Male

绝缘电阻 1000000 MΩ

额定电流Max 10 A

工作温度Max 120 ℃

工作温度Min -40 ℃

额定电压Max 600 V

接触电阻Max 10 mΩ

封装参数

封装 -

外形尺寸

封装 -

物理参数

外壳颜色 Gray

触点材质 Brass

工作温度 -40℃ ~ 120℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

数据手册

在线购买PXP7010/10P/CR/0709
型号: PXP7010/10P/CR/0709
制造商: Bulgin Components 布尔金原器件
描述:标准环形连接器 10 pole Flex Conn male crimp term
