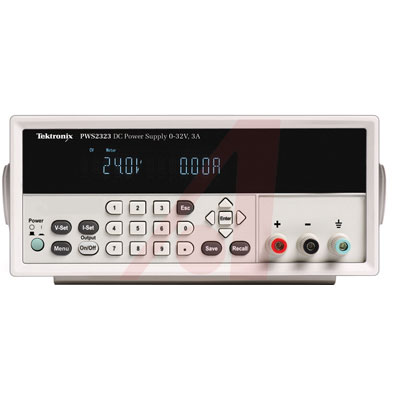

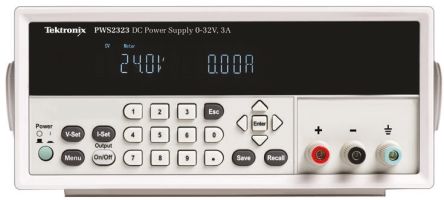

PWS2326

PWS2000 系列直流台式电源Tektronix PWS2000 系列直流工作台电源设计用于高性能和直观操作，带宽电流和电压范围，适用于各种应用。 数字键盘可快速、精确地选择电压和电流。 大数字明亮真空荧光显示提供超强的清晰度。 最大电压设置和密码保护前面板闭锁有助于防止电路损坏。低噪声，线性调节 广泛电压和电流范围 10 mV/10 mA 编程分辨率 明亮真空荧光显示 16 种设置存储器 脉动和噪声 7 MHz 1mV 有效值/3 mVp-p 恒定电压、恒定电流控制模式 ### 随附快速入门用户手册、文档光盘、电源线、校准证书（记录到国家计量研究院的可追溯性）### Tektronix 电源

The Power Supply is designed with the performance and intuitive operation you expect from . Wide current and voltage ranges, plus 10 mV and 10 mA resolution, satisfy a wide variety of applications. Numeric keypads make voltage and current selection fast and accurate. Bright displays with large digits provide excellent readability. The PWS2000 Power Supply Series generates the power you need at a price you can afford.

.

Wide range of power output up to 32V/6A/192W

.

0.05% basic voltage output accuracy and 0.2% basic current accuracy provide quality test data

.

Linear regulation for clean power with less than 3mVp-p ripple and noise

.

Store frequently used configurations in any of 20 setup memory locations

.

Direct parameter entry using numeric keypad

.

See the bright display at a distance, at an angle or under dim lighting conditions
