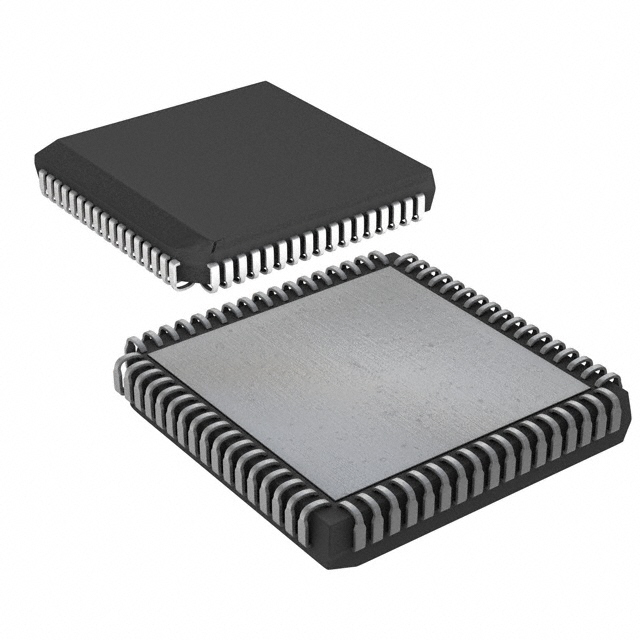

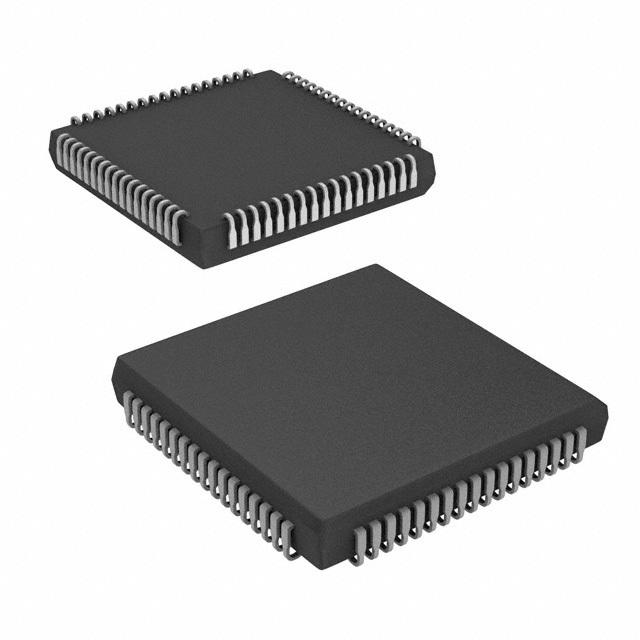

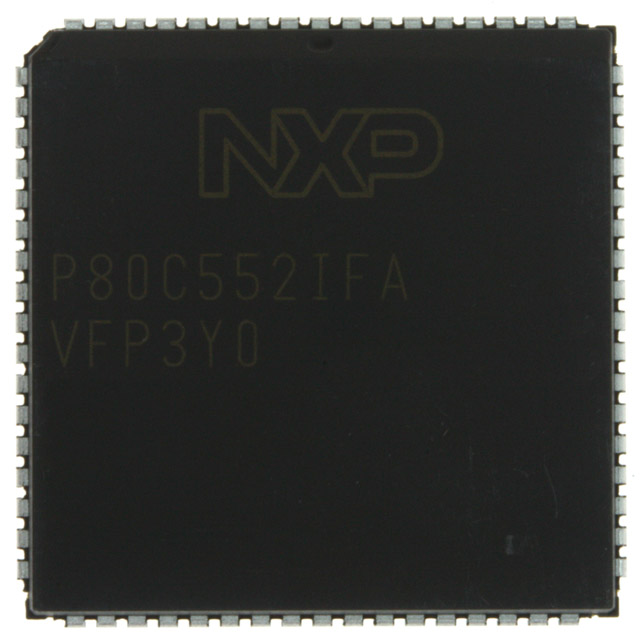

NXP P80C552IFA/08,512 微控制器, 8位, 单芯片, 80C552, 24 MHz, 256 Byte, 68 引脚, LCC
The is a single-chip 8-bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The device has the same instruction set as the 80C51. The device contains a volatile 256 x 8 read/write data memory, five 8-bit I/O ports, one 8-bit input port, two 16-bit timer/event counters, an additional 16-bit timer coupled to capture and compare latches, a 15-source, two-priority-level, nested interrupt structure, an 8-input ADC, a dual DAC pulse width modulated interface, two serial interfaces UART and I2C-bus, a watchdog timer and on-chip oscillator and timing circuits. For systems that require extra capability, the 8XC552 can be expanded using standard TTL compatible memories and logic. The device has two software selectable modes of power reduction idle mode and power-down mode.
电源电压DC 4.50V min
针脚数 68
时钟频率 24.0 MHz
RAM大小 256 x 8
耗散功率 1000 mW
输入/输出数 48
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 68
封装 LCC-68
封装 LCC-68
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Each
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
P80C552IFA/08,512 NXP 恩智浦 | 当前型号 | 当前型号 |
P80C552IBA/08,512 恩智浦 | 类似代替 | P80C552IFA/08,512和P80C552IBA/08,512的区别 |
P80C552EFA/08,512 恩智浦 | 类似代替 | P80C552IFA/08,512和P80C552EFA/08,512的区别 |
P80C552IBA/08 恩智浦 | 功能相似 | P80C552IFA/08,512和P80C552IBA/08的区别 |
