PMODTPH2

DIGILENT PMODTPH2 12Pin Test Point Header, Digilent System Boards and Pmod Boards

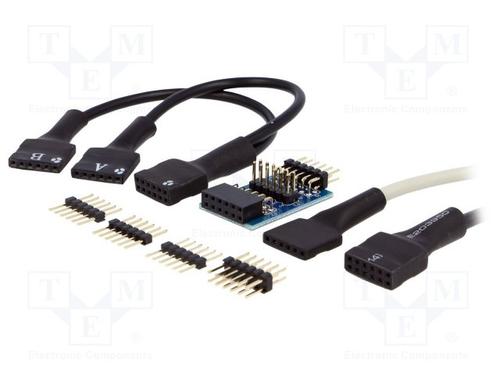

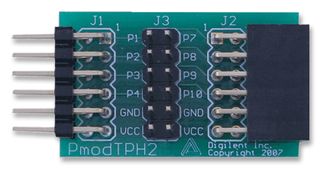

Test Point Header Module Board the TPH2 is an ideal way to test the connection between a Pmod and system board with 12 pin 2 x 6 connectors loaded. It simply passes signals from the J1 connector to the J2 connector, providing test point access via the J3 header.

.

Test points for use with the 12 pin 2 x 6 PMod connection protocol
