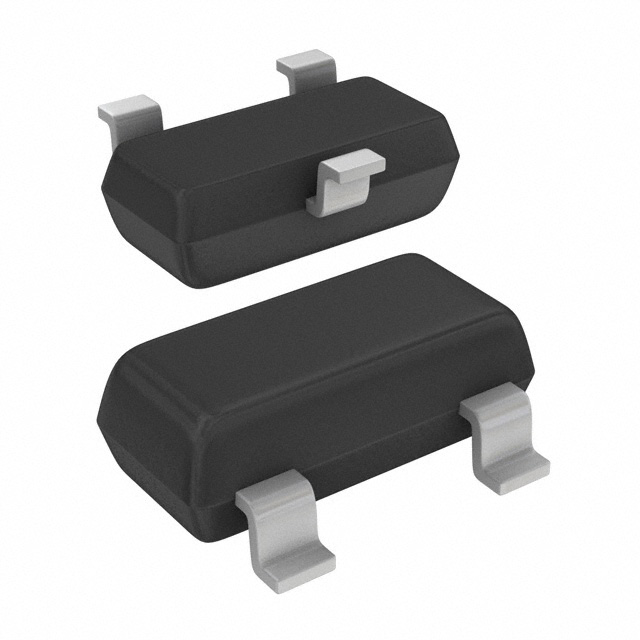

NXP PDTC143TT,215 晶体管 双极预偏置/数字, BRT, 50 V, 100 mA, 4.7 kohm, SOT-23
The is a NPN Resistor Equipped Transistor RET housed in surface-mount plastic package. It offers built-in bias resistors and simplifies circuit design. It is designed for use with general-purpose switching and amplification, circuit drivers, inverter and interface circuit applications.
- .
- Reduces component count
- .
- -65 to 150°C Operating temperature range
极性 NPN
耗散功率 0.25 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 200 @1mA, 5V
额定功率Max 250 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
宽度 1.4 mm
高度 1 mm
封装 SOT-23-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PDTC143TT,215 NXP 恩智浦 | 当前型号 | 当前型号 |
PDTC143TT,235 安世 | 类似代替 | PDTC143TT,215和PDTC143TT,235的区别 |
