P160KNP-0EC15B10K

BI TECHNOLOGIES / TT ELECTRONICS  P160KNP-0EC15B10K  旋转电位器, 导电塑料, P160K系列, 10 kohm, 线性, 1 转, 200 mW, 套管

The P160KNP series from BI Technologies / TT Electronics are rotary potentiometers. These are single turn potentiometers which are designed for frequent adjustment applications. P160KNP series are available in plastic or metal bushing and plastic shaft combination.

.

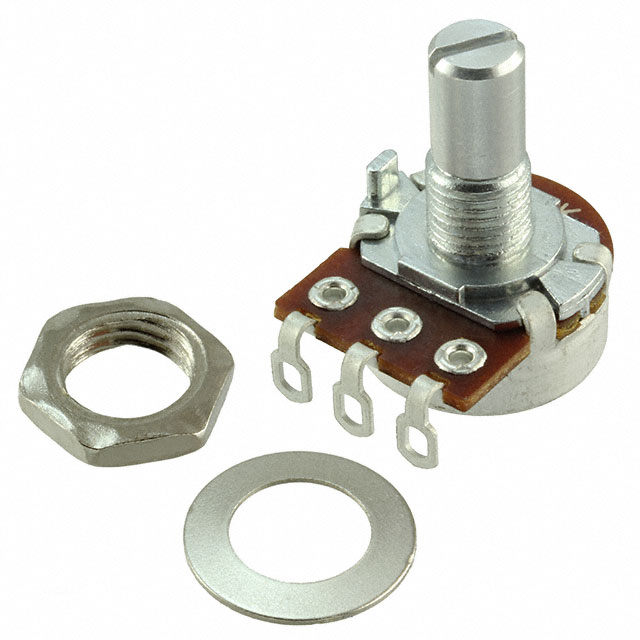

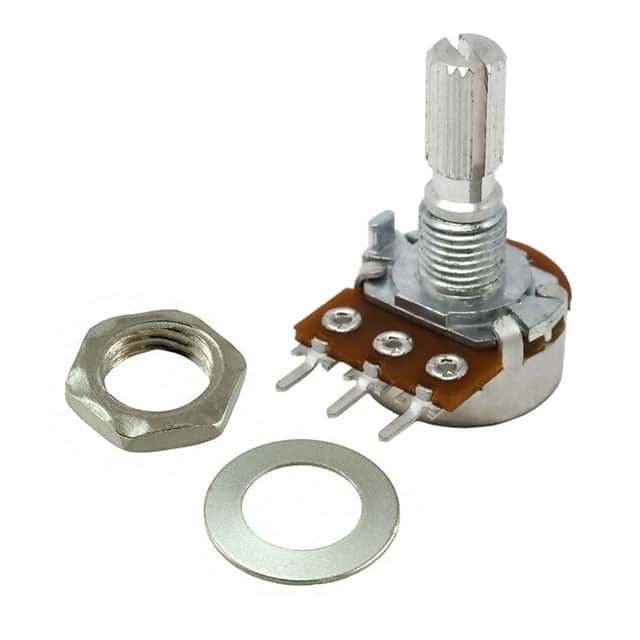

16mm round rotary potentiometer

.

Conductive plastic element

.

Rotational life of 100,000 cycle

.

Multi ganged potentiometer available

.

Side adjustment and solder lugs

.

Resistance value varies from 500 ohm to 1Mohm

.

Standard resistance tolerance of ±20%

.

Operating temperature range -20°C to +70°C

.

Audio, linear, reverse audio tapers available

.

Power rating of 200mW for linear taper and 0.1W for audio and reverse audio taper
