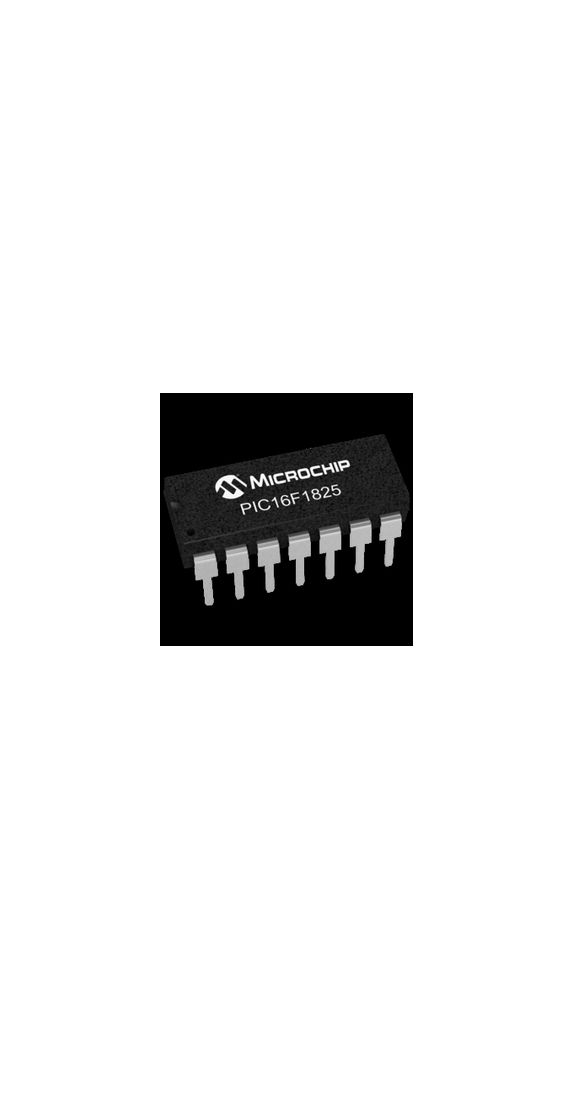

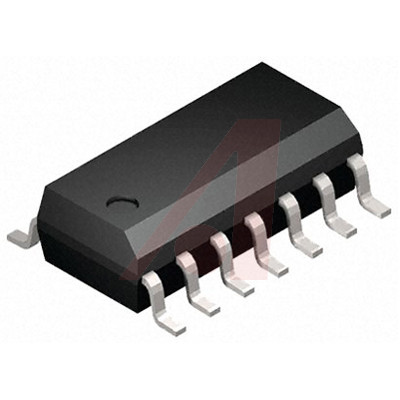

PIC16F1825T-I/SL

MICROCHIP  PIC16F1825T-I/SL  微控制器, 8位, 闪存, AEC-Q100, PIC16F18xx, 32 MHz, 14 KB, 1 KB, 14 引脚, SOIC

The is a 14-pin Flash Microcontroller with XLP technology. This family of devices contain an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers FSRs provide the ability to read program and data memory. The enhanced mid-range core has a 15-bit program counter capable of addressing 32k x 14 program memory space. Accessing a location above these boundaries will cause a wrap-around within the implemented memory space.

.

Flash program memory with self read/write capability

.

Internal 32MHz oscillator

.

Integrated capacitive mTouch sensing module

.

Data signal modulator for generation of custom bit streams

.

CVREF can be used as 5-bit DAC

.

MI²C, SPI, EUSART with auto baud

.

2 ECCP and 2 CCP enhanced/capture compare PWM

.

Comparators with selectable voltage reference

.

8-channel 10-bit ADC with voltage reference

.

25mA Source/sink current I/O

.

Four 8-bit timers TMR0/TMR2/TMR4/TMR6

.

One 16-bit Timer TMR1

.

Extended watchdog timer EWDT

.

Enhanced power-on/off-reset

.

Brown-out reset BOR

.

In-Circuit Serial Programming™ ICSP™

.

On board in-circuit debug

.

Power-on reset POR, power-up timer PWRT and oscillator start-up timer OST

.

Enhanced low-voltage programming LVP

.

Programmable code protection

ESD sensitive device, take proper precaution while handling the device.
