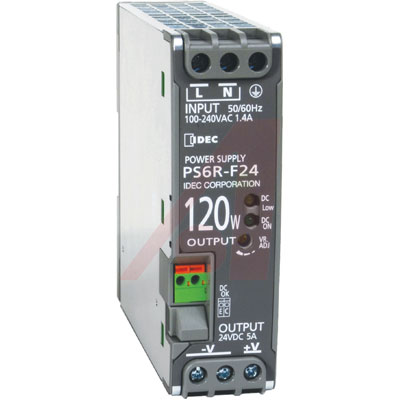

PS6R-F24

IDEC  PS6R-F24  交流-直流转换器, 1路输出, 120W, 5A, 24V

Expandable and space-saving switching power supplies

* 93% efficiency - High efficiency reduces operation costs

* Plug-in output modules for additional output voltages

* Plug-in branch terminal module for additional terminals

* Power Range: 120W, 240W, 480W

* Input voltage: 100 to 240V AC voltage range: 85 to 264V AC/110 to 350V DC

* Up to 70…C 158…F operating temperature

* DC low LED indicator and output contact

* The terminals are captive spring-up screws, ring or fork terminals can be used

* Finger-safe construction prevents electric shocks

* Panel mount bracket and side-mount panel mounting bracket - can be attached to a DIN rail or directly to a panel surface.

* RoHS compliant
