PMK PMT221A 示波器探头, 250 MHz, 无源, 300 V, 1:1, 10:1, General Purpose Oscilloscopes

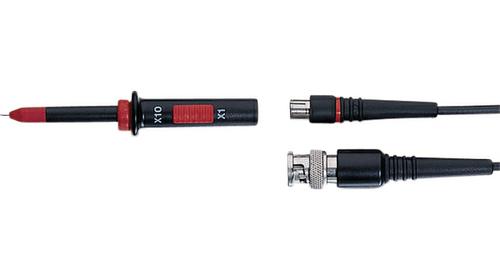

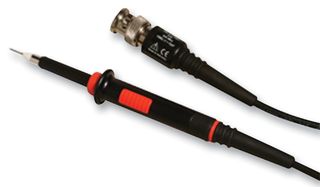

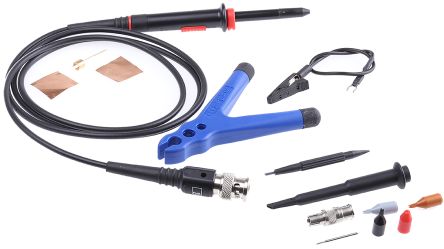

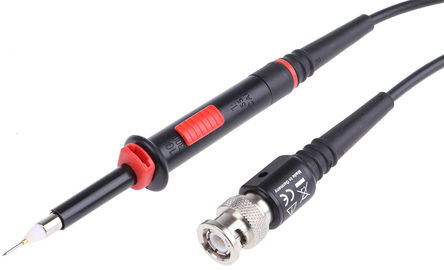

The is a High Impedance Switchable Passive Probe designed for instruments having 1MR input resistance. This probe is recommended for general purpose probing applications and is adjustable for low and high frequencies. The probe is rated with 300V CAT II maximum input voltage and complies with latest safety standards. It features CeramCore™ technology. The probe"s entire core is made of a high quality ceramic hybrid. Pure coaxial design and laser trimmed resistors ensure highest signal fidelity along the signal path offering high bandwidth and fast rise-times for accurate impulse measurements. This switchable probe offers unbreakable coaxial reed switches for changing between attenuation modes. It is equipped with s signature spring loaded, needle sharp tips to support precise and safe measurements minimizing the risk of slipping off the board and produce a short circuit. Probe tips are interchangeable and can be replaced easily.
- .
- Coaxial design
- .
- New IC contacting system for 0.8 to 1.27mm pitch
- .
- Pollution degree 2
The input voltage rating of the probe decreases as the frequency of the applied signal increases.
