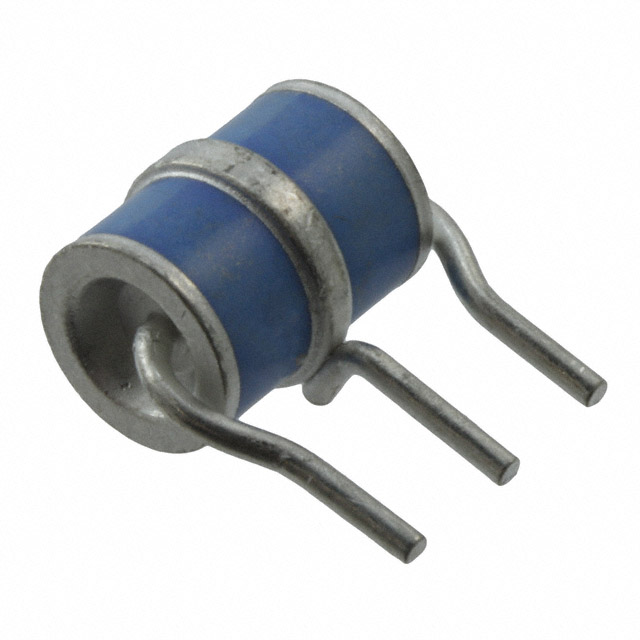

LITTELFUSE PMT809004 Gas Discharge Tube GDT, 90V, 3 Terminal Through Hole, 20kA, 500V
Description
GDT circuit protection devices dissipate electrical surge energy safely within a contained plasma gas. Commonly used to help protect sensitive telecom and networking equipment and lines, GDTs protect from damage that may result from lightning strikes and equipment switching operations.
The GDT series described in this document are available in a variety of leaded and surface mount forms and offered with and without optional fail safe clip. Please refer to the electrical specifications, dimension and packaging options section of this document for additional information.
Features
• RoHS compliant
• Low insertion loss
• Excellent response to fast rising transients
• Ultra low capacitance
• 10KA A suffix devices / 20KA B suffix devices surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5
• Available with thermal failsafe option add ‘F’ suffix to part number
Applications
SL1021 / SL1024:
• Broadband equipment
• ADSL equipment
• XDSL equipment
• Satellite and CATV equipment
• Splitters
• General telecom equipment
PMT8:
• Telecom network interfaces
• Telephone line cards
• Repeaters
• Modems
• Line test equipment
