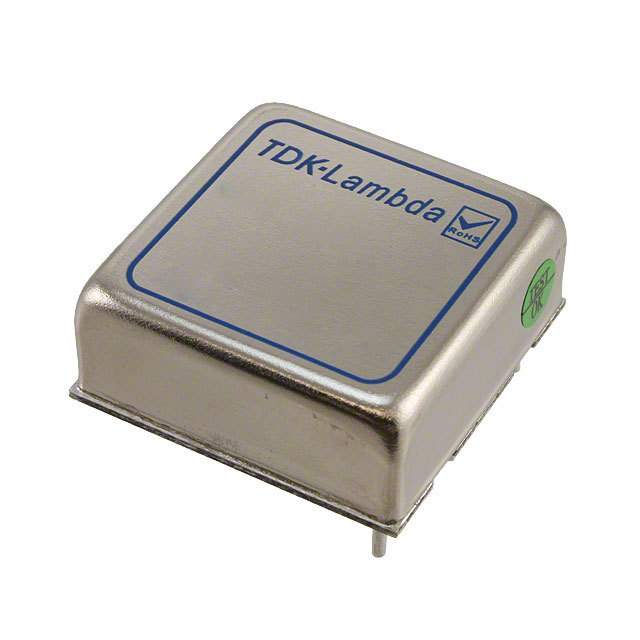

Module DC-DC 48Vin 1Out 5V 3A 15W 6Pin
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
得捷:
DC DC CONVERTER 5V 15W
艾睿:
Provide the ability to switch between voltages by using this step down PXB15-48WS05/NT DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
Chip1Stop:
Module DC-DC 48VIN 1-OUT 5V 3A 15W 6-Pin
Verical:
Module DC-DC 48VIN 1-OUT 5V 3A 15W 6-Pin
电源电压DC 48.0 V
额定功率 15 W
输出接口数 1
输入电压DC 18V ~ 75V
输出电压 5 V
输出电流 3 A
输出功率 15 W
隔离电压 1.6 kV
输入电压Max 75 V
输入电压Min 18 V
输入电压DC Max 75 V
输入电压DC Min 18 v
输出电流Max 3 A
输出功率Max 15 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 48 V
安装方式 Through Hole
引脚数 6
封装 DIP-6
宽度 25.4 mm
高度 9.91 mm
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
