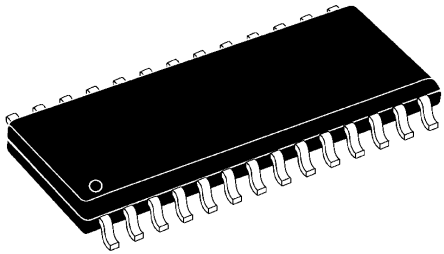

PIC16 8 位 微控制器 带7 KB 闪存 采用28引脚SOIC封装.
PIC16LF1902/1903 8-Bit Flash Microcontrollers
The PIC16F range of microcontrollers from are 8-bit MCUs that incorporate Microchips PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16LF1902/1903 family of microcontrollers is based upon Microchips enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 5 MIPS, up to 7 Kbytes program memory with RAM up to 256 bytes. On board is a configurable oscillator.
### Microcontroller Features
20 MHz Max. CPU Speed
49 Instructions
16 Level Hardware Stack
Internal Oscillator – Selectable Frequency Range 16 MHz to 31.25 kHz
25 I/O Pins
XLP Technology
Power-On Reset POR
Power-Up Timer PWRT
Oscillator Start-Up Timer OST
Brown-Out Reset BOR
Extended Watchdog Timer WDT
Enhanced Low-Voltage Programming LVP
In-Circuit Serial Programming ICSP
### Peripherals
Integrated LCD Driver – 72 Segment
11 Channel 10-bit Analogue to Digital Converter ADC
One 8-bit Timer
One 16-bit Timer
Fixed Voltage Reference FVR
电源电压DC 1.80V min
工作电压 1.8V ~ 3.6V
时钟频率 20.0 MHz
RAM大小 256 B
位数 8
FLASH内存容量 7 KB
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 28
封装 SOIC-28

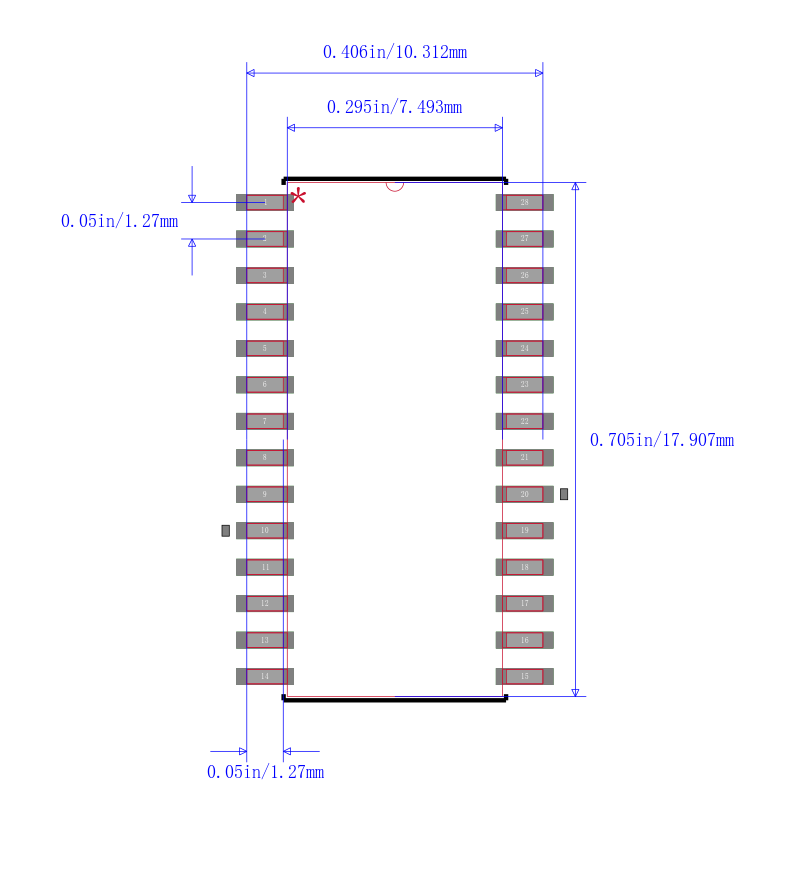

长度 17.9 mm
宽度 7.5 mm
高度 2.35 mm
封装 SOIC-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
