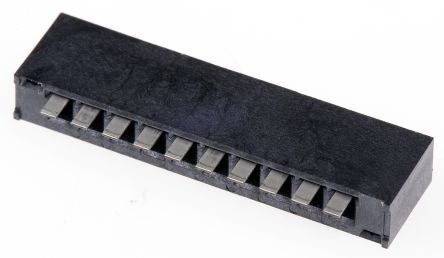

PCE Series Power Edge Card InterfaceThese PEC Series Power Edge Card Interface from Samtec take 0.8 mm thick cards . The one piece contacts of this range of the PEC Series Power Edge Card Interface have Tin plating. The above board height of the PEC Series Power Edge Card Interface is 7.9 mm with a body width of 4.45 mm. Post length for the Through Hole version of the PEC Series Power Edge Card Interface is 1.86 mm. The design of the SMT version of these PEC Series Power Edge Card Interface includes Locking Clips.PEC Series Interfaces with 7 and 10 ways have a polarization rib ### 板边连接器 - Samtec
PCE Series Power Edge Card Interface
These PEC Series Power Edge Card Interface from take 0.8 mm thick cards . The one piece contacts of this range of the PEC Series Power Edge Card Interface have Tin plating. The above board height of the PEC Series Power Edge Card Interface is 7.9 mm with a body width of 4.45 mm. Post length for the Through Hole version of the PEC Series Power Edge Card Interface is 1.86 mm. The design of the SMT version of these PEC Series Power Edge Card Interface includes Locking Clips.

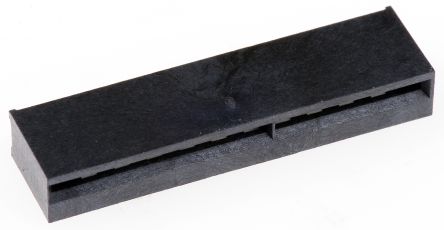

PEC Series Interfaces with 7 and 10 ways have a polarization rib
### 板边 - Samtec
触点数 10
极性 Female
触点电镀 Tin, Tin over Nickel
额定电压AC 250 V
额定电流 9.8 A
排数 1
额定电流Max 7.5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 VAC
安装方式 Through Hole
封装 -
长度 30.48 mm
宽度 4.45 mm
高度 7.9 mm
封装 -
触点材质 Beryllium Copper
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
